DC Motor Control

DC Motor Control (EA16) delivers hands-on skills in installing, operating and troubleshooting DC drives used in electric motor circuits. An add-on to Electromagnetic Motor Starters (EA07), EA16 covers eight additional skills including operating SCR and PWM speed controllers, DC drives and braking controls. The skills-based curriculum presents hands on activities using industrial-grade components mounted on the seven included Flexponent® panels.

Included

Order #16-EA16:
LearnMate® E-learning Content: DC Motor Control (EA16)
Teachers’ Guide
(7) Flexponent® panels:
Panel E007: SCR Speed Controller
Panel E017: Digital Relay
Panel E025: F-O-R Switch and Potentiometer

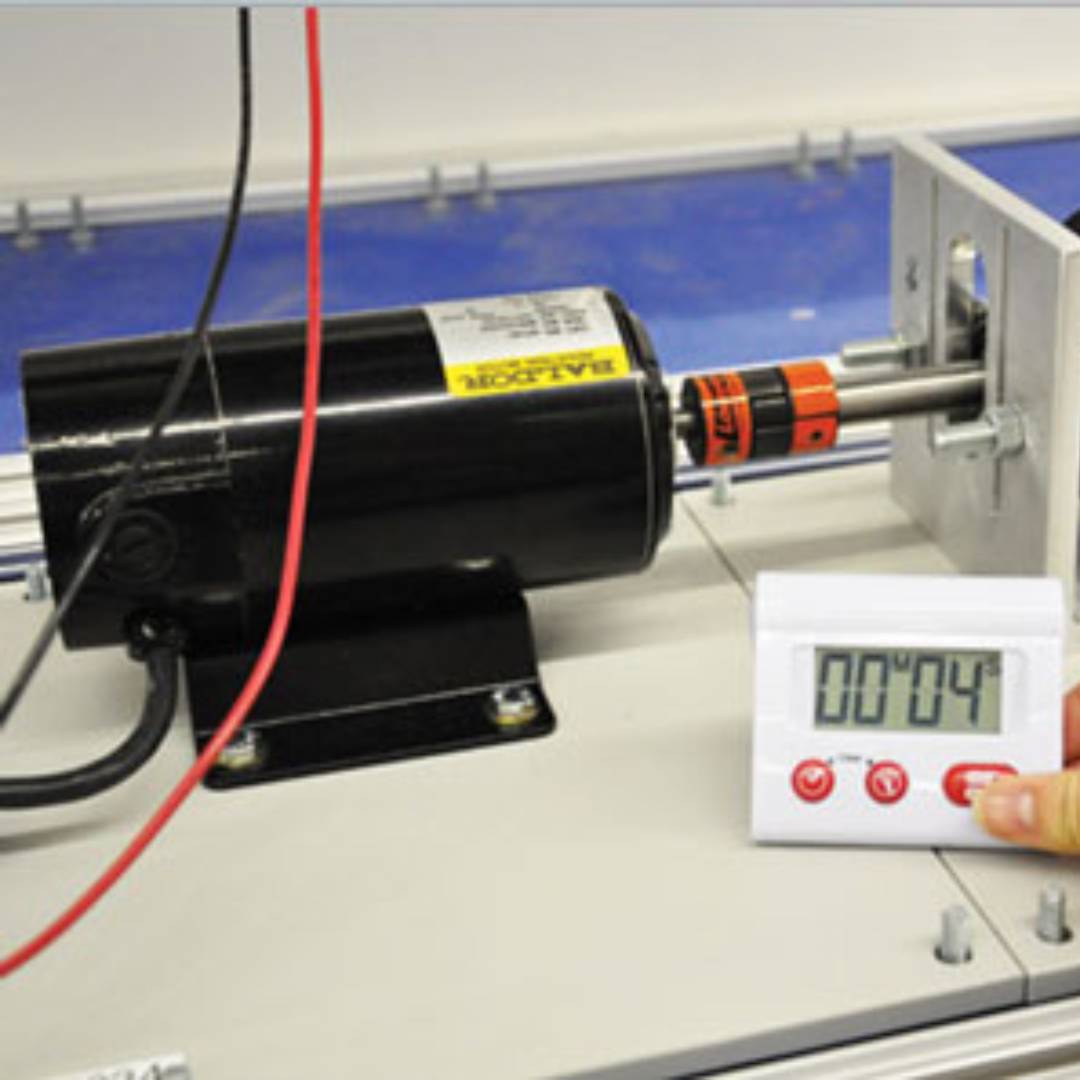

Panel E034: DC Motor
Panel E038: PWM Motor Control
Panel E048: Inertial Load
Panel E071: Regenerative Four Quadrant DC Drive

Requirement (sold separately)

JobMaster® Learning Station Order #10-LS00-0200
Power Control Panel: (120V)* Order #10-PC04-0000

* International step-down transformer package (Order #10-PC09-0000) required for international applications.
Digital multimeter (Fluke Model 115 or equivalent)

Prerequisite courses:
Electric Motors (EA07) Order #16-EA07

Course Outline

Skills Acquired
Skill 1: Demonstrating DC Drive Principles
Skill 2: Connecting an d Operating a SCR Speed Controller
Skill 3: Connecting and Operating a PWM Speed Controller
Skill 4: Connecting, Setting-up, and Operating a DC Drive
Skill 5: Connecting and Operating Braking Controls
Skill 6: Testing a DC Drive
Skill 7: Troubleshooting a DC Drive
Skill 8: Performing Preventative Maintenance

In Stock
100% Original and quality

Additional information

Brand

Intelitek
