Stirling Cycle Hot Air Engine: Twin Power
The unit is for demonstration of stirling cycle hot air engine principles.

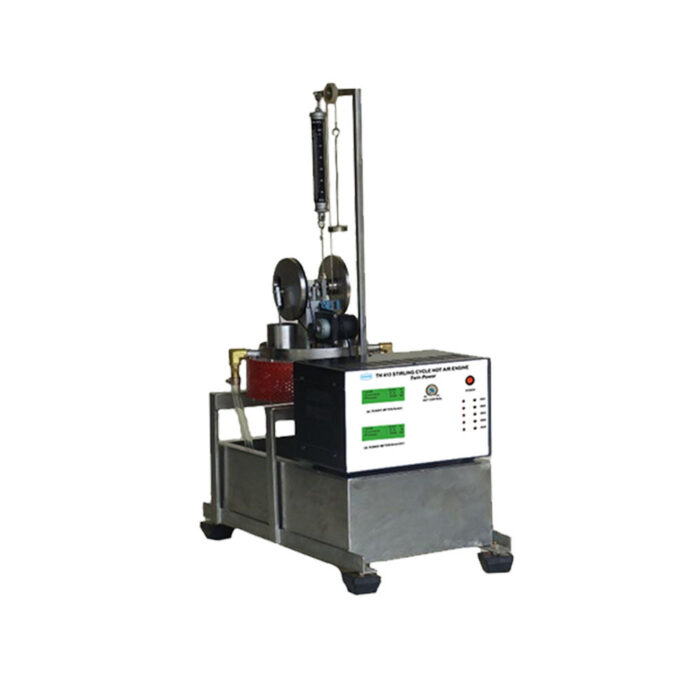

The engine consists of a large vertical cylinder with heater to generate hot gas. Twin cylinders above the hot gas cylinder generate power. The hot gas cylinder head can be cooled by water from a cooling system. All cylinders are attached to a common shaft. Heater to the hot gas cylinder can be varied.
Instruments are provided for measurement of input power and output power.
The advantage of this design is the ability to bring the engine to operating condition in a short time.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Torque vs speed for a given input power.
- Output and efficiency vs speed for a given input power.
- Effect of hot gas cylinder head cooling on efficiency.
TECHNICAL DATA
| Heater | 500 W |
| Maximum output power |
|
| Cooling system | Water tank and pump |
| – Torque | Mechanical dynamometer with spring balance, belt, and weights |
| – Speed | Portable tachometer |
| – Sensors with digital display | Voltage and current of input power |
| Software for data display and analysis by computer (separately supplied). | |
| Power supply | 220V 1Ph 50Hz. Other power supply is available on request. |
