Suspension Cable

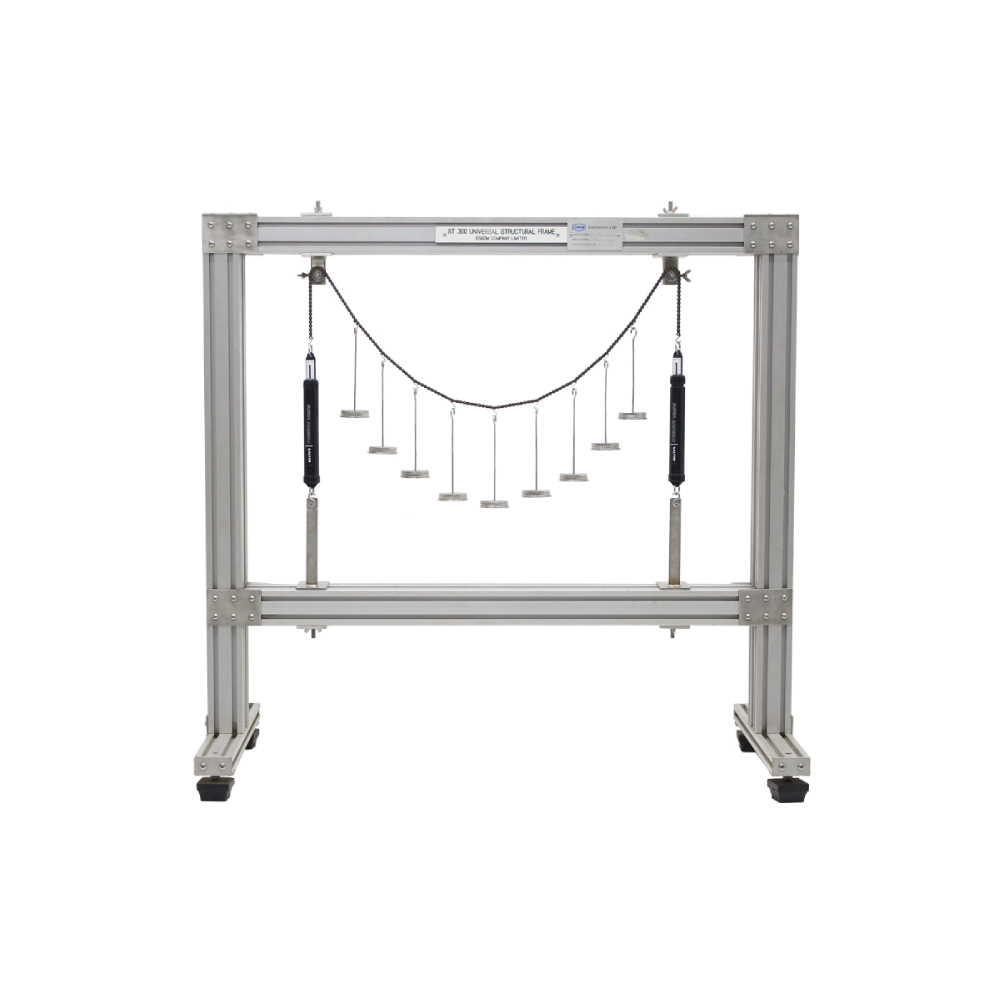

This equipment is used for studying the inter-action between suspension cables and load measuring supports with uniform or non-uniform distributed load on the catenary cable. It is to be used with ST300 Universal Structural Frame (separately supplied).

A light roller chain (the cable) is held by two sprocket pulleys and a spring balance is connected to each end of the roller chain. Weight hangers are evenly placed along the roller chain whose length simulates a parabolic curve. Weights can be put on the load hangers to create symmetrical and non-symmetrical cable.

Instruction manual is also included.

TYPICAL EXPERIMENTS
  • Analysis using catenary and parabola theory
  • Cable weight and tension
  • Comparison of a symmetrical suspension cable and catenary
  • Unsymmetrical suspension cable A point load on a suspension cable
TECHNICAL DATA
Roller chain xxx mm long
Load hangers 9
Weights 1 lot
Sprocket pulleys 2
Spring balances 2
Hanger slider 4
Software for data display and analysis by computer (separately supplied).
In Stock
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0
SKU: ST355 Category: Tag:
