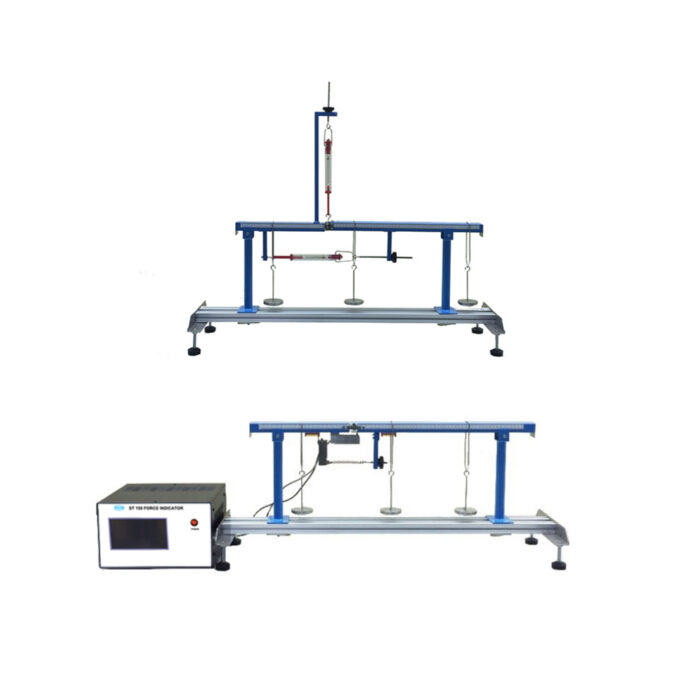

Shear Force and Bending Moment
This equipment is used for measurement of shear force and bending moment in a beam from which comparison with theoretical values can be made. It is to be used with ST305 Universal Base Frame or ST300 Universal Structural Frame (separately supplied).
The beam has two parts with one part having ball bearings travel on vertical surface of the other part, an overhung spring balance for measuring the shear force and an underhung spring balance for measuring bending moment are provided. The beam rests on two round supports. Load hangers and weights slide along the beam.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Visual demonstration of the Shear Force and Bending Moment at a cut section in a beam
- Variation in bending moment for variations in load, load position and load arrangement
- Comparison of experimental results with theoretical values and bending moment diagrams
TECHNICAL DATA
| Beam length | 700 mm |
| ST111 Round Supports | 2 |
| Spring balances | 2 |
| Load hangers | 3 |
| Weights | 1 lot |
| Software for data display and analysis by computer (separately supplied). | |
