Torsion Testing Machine: 200 Nm
This is an educational machine for an extensive range of torsion tests.

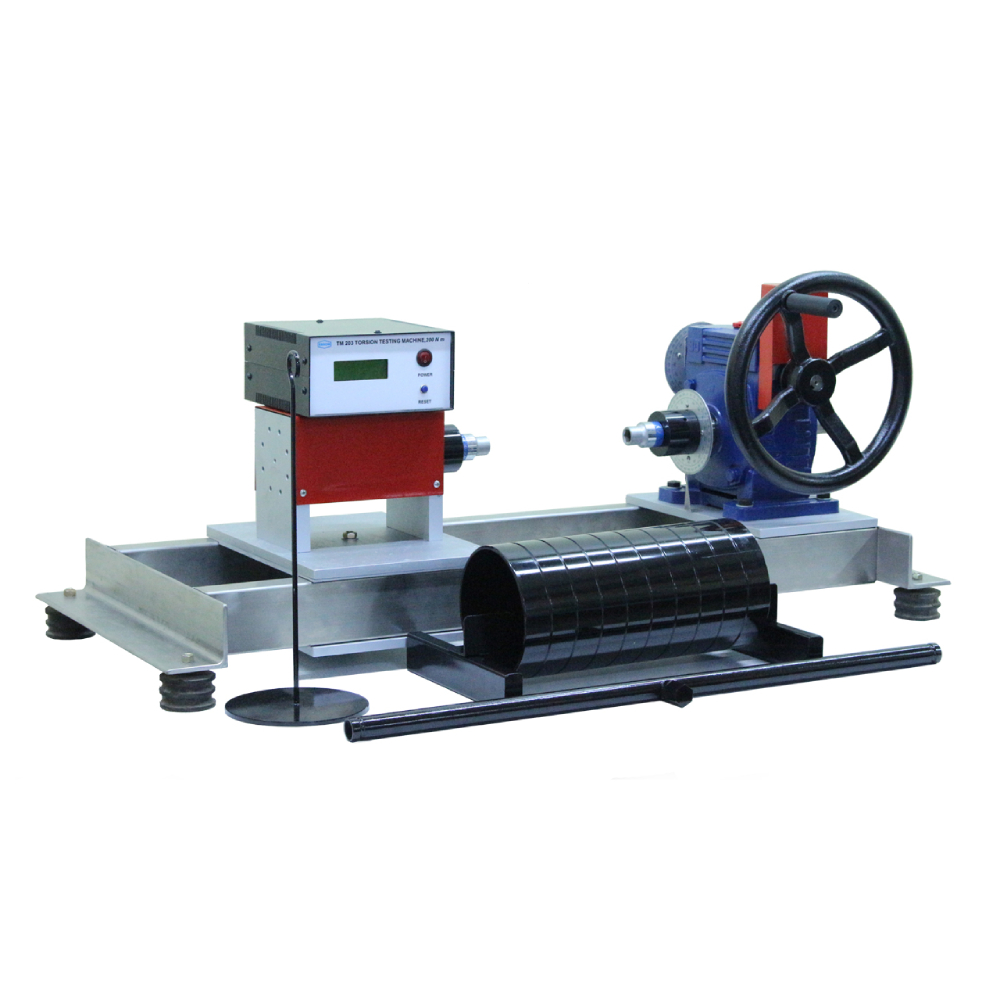

The machine consists of a torque applying unit, and a torque measuring unit sliding on two parallel stainless steel tubes. The torque applying unit is reduction gear with a hand wheel, and angular displacement measuring instruments. The torque measuring unit has a torque arm with a two direction load cell. The specimen is held at each end by hexagonal drive sockets which fit on the input shaft from the gear box and the torsion shaft. Different sizes of drive sockets are provided. The torsion shaft column can be slided on two parallel guides to accommodate specimen length. The equipment is a table top type with adjustable footings.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Relation of torque and twist angle under elastic deformation.
- Determination of modulus of rigidity and yield shear stress.
- Determination of modulus of rupture.
- Characteristic of materials under plastic deformation.
- Comparation of twist angle for forward-reverse directions.
- Relationship between twist angle, length and size of specimens.
TECHNICAL DATA
| Maximum torque | 200 Nm |
| Drive shaft ends | 2x 3/4 in. mm square |
| Drive sockets | 19 mm for hexagonal specimen |
| Maximum specimen length | 350 mm. |
| Input shaft rotation: | |
| – Revolution counter | 5 digits |
| – Circular scale | 360 × 1 degree reading graduation. |
| Torque digital display | 0.1 N-m resolution. |

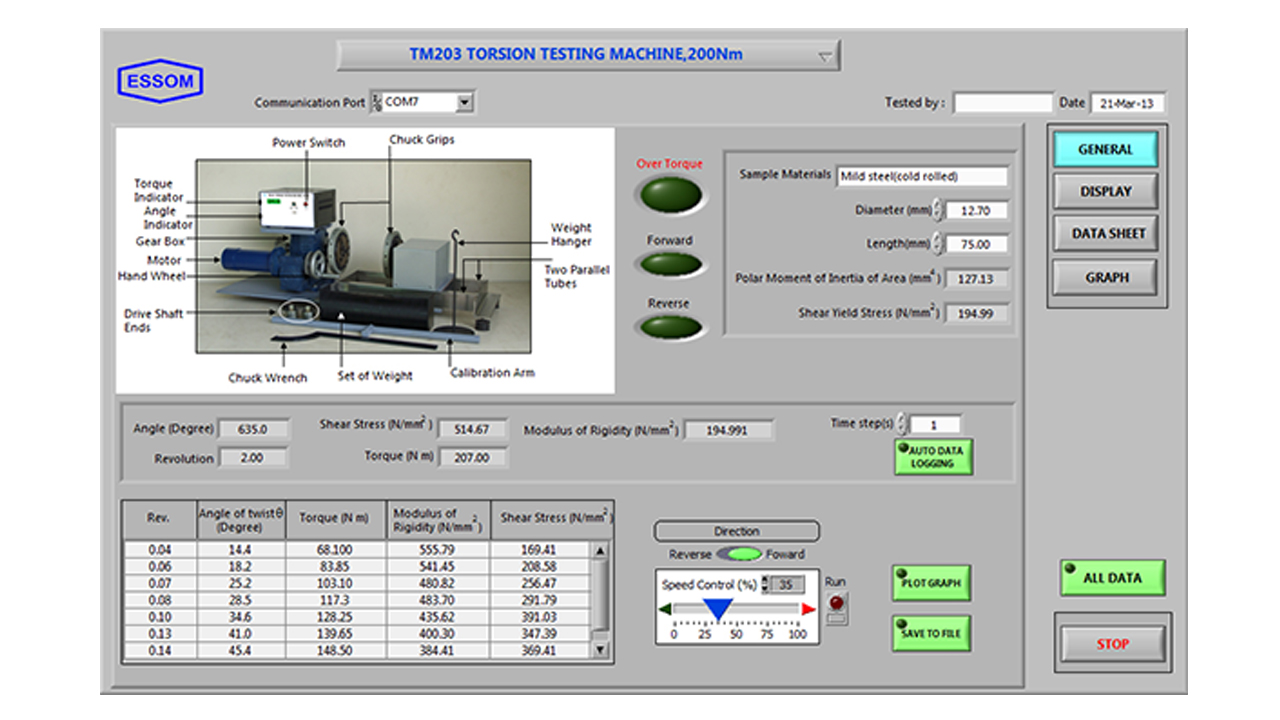

| Software for data display and analysis by computer (separately supplied). | |
| Power supply | 220V, 1 Ph, 50Hz. Other power supply is available on request. |
