Universal Testing Machine: 30 kN Ball Screw
Universal Testing Machine 30 kN with four-column design and hand-operated ball screw for educational load and displacement testing.
Description

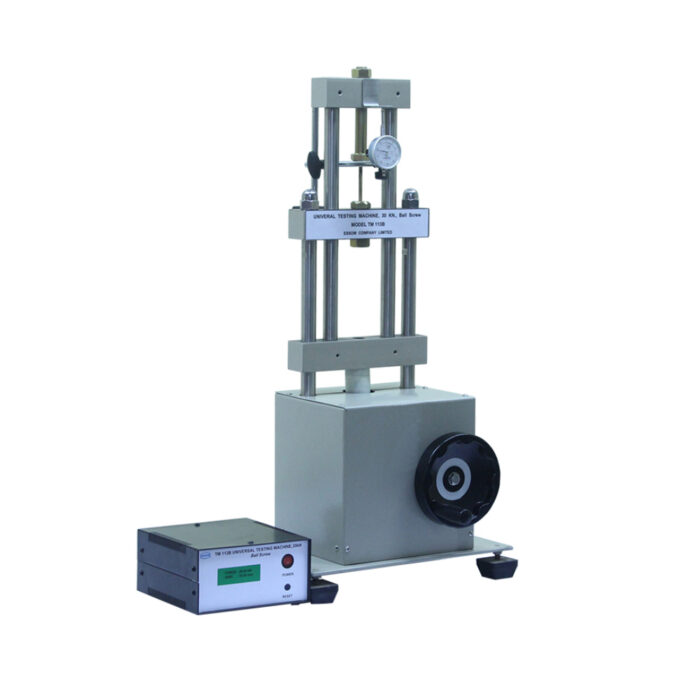

Universal Testing Machine 30 kN Ball Screw. This is a bench top educational simple universal testing machine. The machine uses four in-line columns and a hand operated ball screw with measuring instruments for load and displacement.
Test accessories and specimens are available as optional items.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Tension
- Compression
- Bending
- Deep draw
- Shear
- Brinell hardness
- Spring compression
TECHNICAL DATA
| Capacity | 30 kN |
| Maximum crosshead travel | 50 mm |
| Measuring instruments | |
| – Load | Force digital display |
| – Extension | Dial indicator 0-20 mm x 0.01 mm. graduation with magnetic holder. |
| Software for data display and analysis by computer (separately supplied). | |
| Power supply (optional version) | 220V, 1 Ph, 50 Hz. Other power supply is available on request. |
Explore more engineering education products on our website at www.LABTS.co.id
Additional information
| Brand | Essom |
|---|
About brand
ESSOM main objectives are to design and manufacture engineering and science laboratory equipment for engineering education predominantly in mechanical and civil engineering.
