Two Hinged Parabolic Arch, Fixed End
This equipment is used for measurement of horizontal thrust and end fixing moments of the abutment for comparison with model analysis and simplified theory. It is to be used with ST300 Universal Structural Frame (separately supplied).

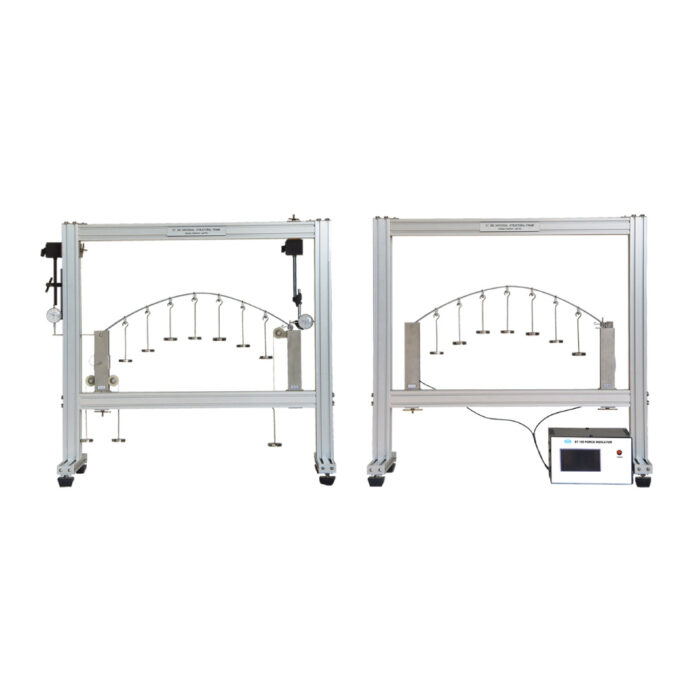

A parabolic arch has one end pivoted on a moment support and fitted with an arm for applying and measuring moments and rotations. The other end is pivoted in ball bearings on a horizontal force support. Load hangers and weights are attached to the arch. Load hangers are used for measurement of horizontal thrust and fixing moment.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Demonstration of the characteristics of a fixed arch
- Examination of the relationship between applied loads, horizontal thrust and fixing moment
- Comparison of behavior to simplified theory
TECHNICAL DATA
| Arch | |
| – Mild steel |
|
| Loading points | 7 equally spaced |
| ST115 Moment Support | 1 |
| ST119 Horizontal Force Support | 1 |
| ST131 Dial Indicators | 2 |
| Load hangers | 7 |
| Weights | 1 lot |
| Software for data display and analysis by computer (separately supplied). | |
