Deflection of Beams and Cantilevers

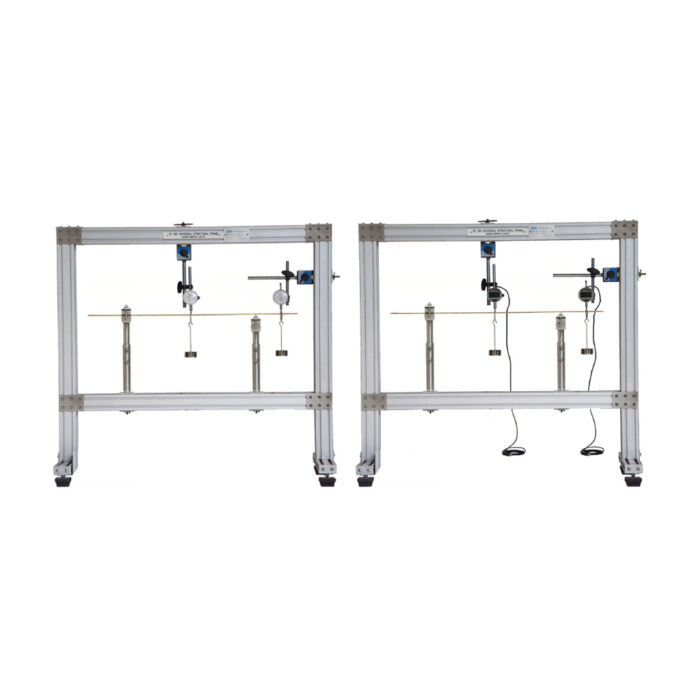

The equipment is used for measurement of deflections and slopes of a beam under bending or and compare with values calculated by differential equation. It is to be used with ST300 Universal Structural Frame (separately supplied).
The beam rest on two built-in/knife edge supports. Load hangers are used for point loads and a number of weights are used for uniform load. Deflections and slopes are measured by dial indicators.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Beam deflections
- Beam bending formula
- Shape of a deflected beam.
TECHNICAL DATA
| Test beam | |
| – Steel | 2 |
| ST112 Built-in/Knife Edge Support | 2 |
| Hanger sliders | 2 |
| Load hangers | 2 |
| Weights | 1 lot |
| ST131 Dial Indicators | 2 |
| Software for data display and analysis by computer (separately supplied). | |
100% Original and qualityRelated products
-
Structures and AccessoriesRedundant Truss
The equipment allows measurement of deflections and axial forces in pin-jointed truss members when a redundant member is added. It is to be used with ST300 Universal Structural Frame (separately supplied).
A wall mounted truss frame has a pinned upper joint and the lower joint a roller bearing on a support. There are 7 truss members and an extra member with an adjustable length. Load is applied by a load hanger and weights. Deflection is measured by a dial indicator. Each truss member has a strain gauge which is wired to form a full bridge with temperature compensation and zero adjustment in the strain indicator.
Instruction manual is also included.
TYPICAL EXPERIMENTS- Study of strains, stresses, forces and deflections in a statically determinate and indeterminate structure
- Force analysis by Method of Joints
- Force analysis by the use of the strain energy method.
TECHNICAL DATAMember approximate cross-section 30 mm2 Members with strain gauge bridge 8 ST 131 Dial Indicator 1 ST 341-001 Force/Strain Indicator 1 Load hanger 1 Weights 1 lot. Software for data display and analysis by computer (separately supplied). Power supply 220 V, 1 Ph, 50Hz. or as required (0 reviews) -
Structures and AccessoriesEquilibrium of Forces
The equipment is used for studying the equilibrium of concurrent and non-concurrent forces in a single plane. It is to be used with ST300 Universal Structural Frame (separately supplied).
Pulleys are fitted around the frame and multi directional forces are produced with nylon cords by weight hangers and weights. A graph paper (not supply) attached to the board is used for recording the lines of forces. Two rings cord for concurrent or non-concurrent forces and a device for marking the lines of the cords are provided.
Instruction manual is also included.
TYPICAL EXPERIMENTS- Equilibrium of a set of forces acting in a vertical plane
- Equilibrium of concurrent and non-concurrent forces
TECHNICAL DATAForce board 300 x 500 mm Two rings cord Cord marking pen Pulley set 1 set Nylon cords 6 Load hangers 6 Weights 1 lot. Software for data display and analysis by computer (separately supplied). (0 reviews)
