Equilibrium of a Rigid Body
This equipment is used for studying the ground and wall reactions as a weight is moved up a rigid ladder. It is to be used with ST300 Universal Structural Frame (separately supplied).

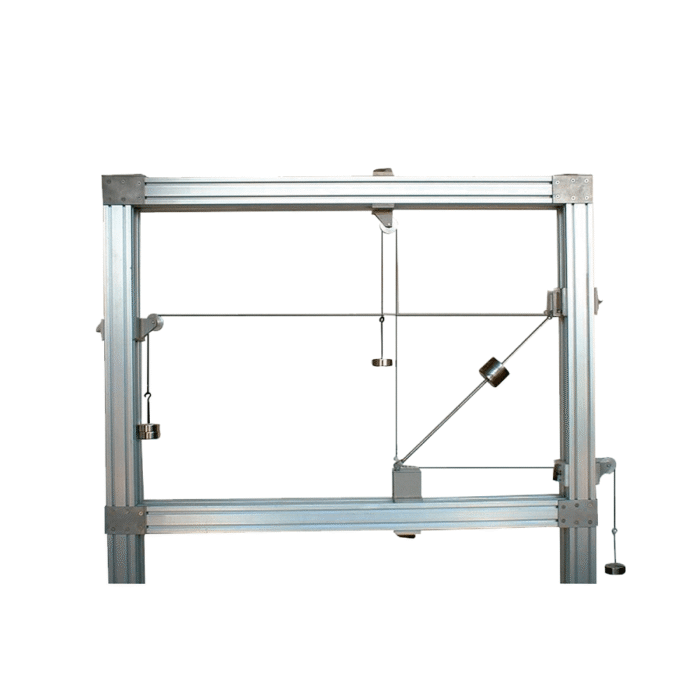

A ladder with rollers at each end leans against a wall. Reactions at both ends of the ladder are measured by nylon cords tensioned by weights. A sliding weight can be clamped at any position on the ladder and the ladder is prevented from falling by a stirrup at the top.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Determine ground and wall reactions as a body moves up a ladder.
- Experimental verification of calculations using the three conditions of equilibrium
TECHNICAL DATA
| Ladder | 500 mm long |
| Pulley sets | 3 |
| Cords | 3 |
| Sliding weight | 1 |
| Load hangers and cords | 3 |
| Weights | 1 lot |
| Track plates | 2 |
| Software for data display and analysis by computer (separately supplied). | |
