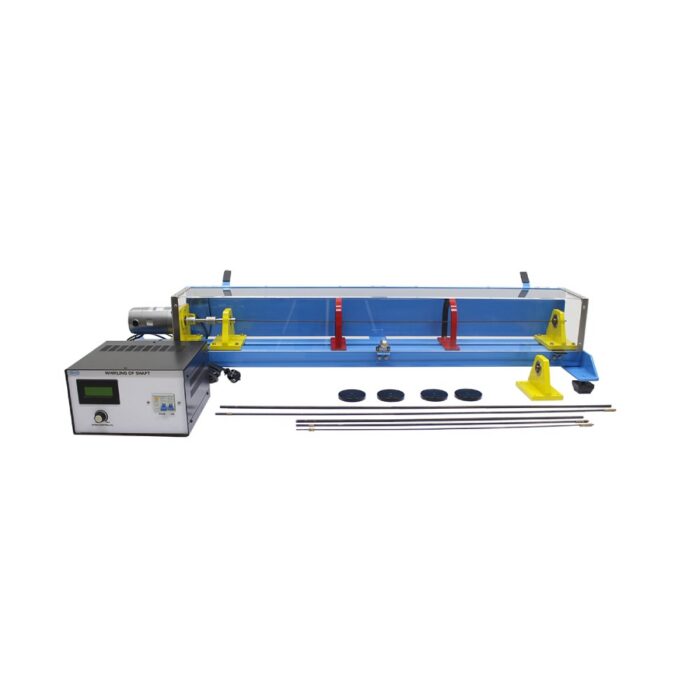

Whirling of Shafts Apparatus
For studying the critical rotational speeds on simply loaded of various shafts. It is a self-contained bench mounting. Apparatus includes a DC motor drives the shaft via a flexible coupling. Motor speed can be continuously variable and displayed on a digital readout by a revolution counter. A transparent protective cover and safety rings ensure safe operation. The unit includes the tools need for easy experiment setup.
TYPICAL EXPERIMENTS
- Demonstration of basic whirling
- The effect of end conditions
- Variation of shaft diameter and supported length
- Loaded shaft (with mass disc) Eccentric loading
TECHNICAL DATA
| Shaft | Mild steel, different diameter and length |
| Mass | 1 lot |
| Measuring tape | 1 |
| Fixed bearing support | 1 |
| Free bearing support | 1 |
| – Motor | |
| – Speed control | |
| – Software for data display and analysis by computer (separately supplied) | |
| Power supply | 220 V, 1 Ph, 50 Hz Other power supply is available on request. |
