Tensile Modulus of Elasticity

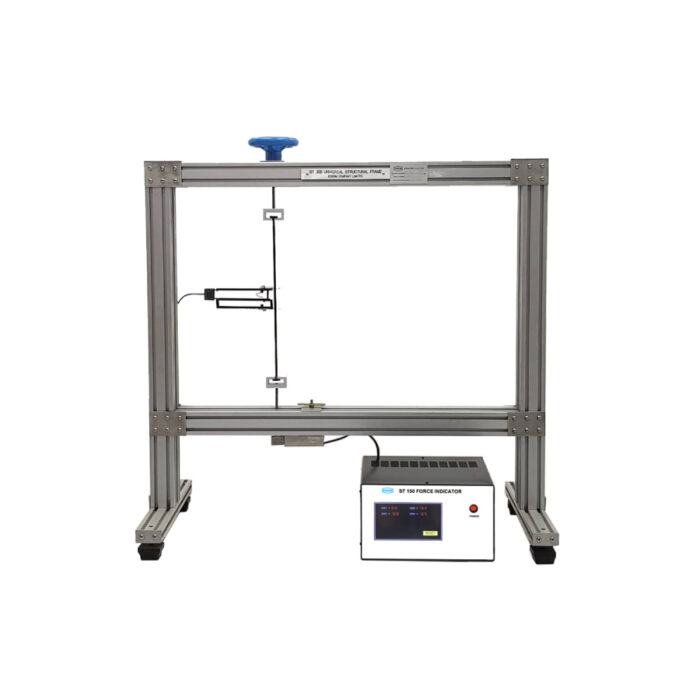

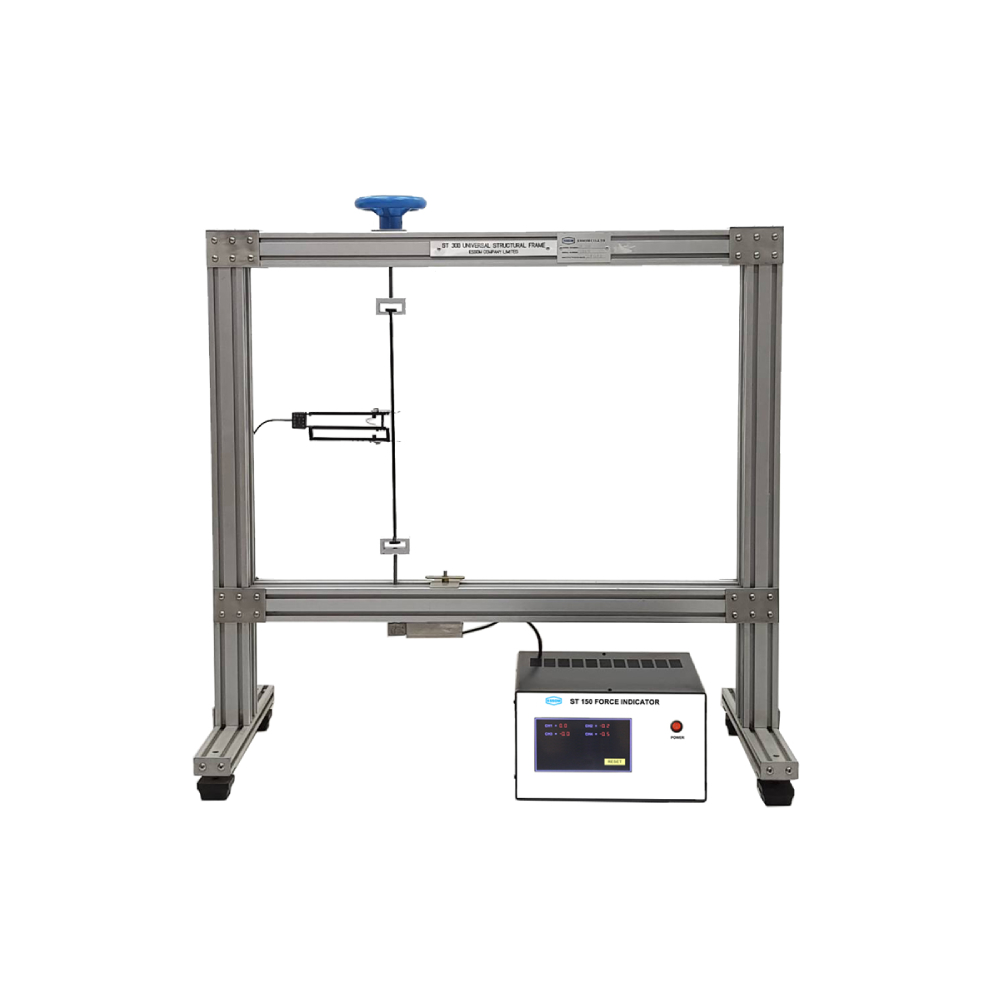

This equipment is used for studying the modulus of elasticity of materials in the form of rods. It is to be used with ST300 Universal Structural Frame (separately supplied).
The rod is mounted between two gripping heads and a load of up to 3 kN is applied by means of screw with turning wheel. The load is measured by load cell with force indicator. Elongation of the gauge length is measured by extensometer.
Instruction manual is also included.
TYPICAL EXPERIMENTS
Modulus of elasticity of materials
TECHNICAL DATA
| Test rod | Mild steel, brass and aluminum |
| Test rod holders | 2 |
| Extensometer with output | 1 |
| Loading device | Screw with a turning wheel |
| Force measurement | Load cell with ST 150 Force Indicator |
| Software for data display and analysis by computer (separately supplied). | |
| Power supply | 220 V, 1 Ph, 50Hz. or as required |
