Additional information
| Brand | Essom |
|---|

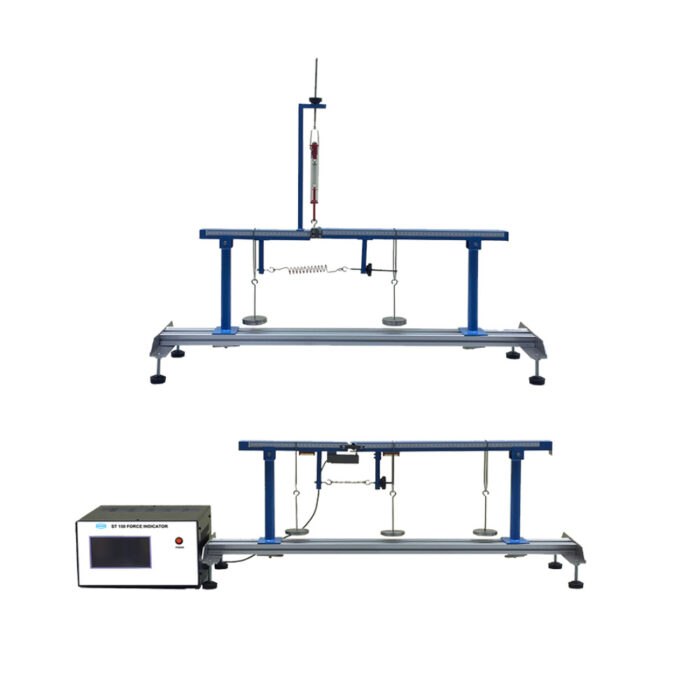

Shear Force
This equipment is used for measurement of shear force on a section of a beam from which comparison with theoretical values can be made. It is to be used with ST305 Universal Base Frame or ST300 Universal Structural Frame (separately supplied).
The beam has two parts with one part having ball bearings travel on flat vertical surface of the other part, an overhung spring balance measures the shear force and an underhung spring is provided to resist bending moment. The beam rests on two round supports. Load hangers and weights slide along the beam.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Visual demonstration of the Shear Force at a cut section in a beam
- Comparison of experimental results with theoretical values
TECHNICAL DATA
| Beam length | 700 mm |
| ST111 Round Supports | 2 |
| Spring | 1 |
| Spring balance | 1 |
| Load hangers | 3 |
| Weights | 1 lot |
| Software for data display and analysis by computer (separately supplied). | |
