Three Dimensional Equilibrium
The equipment is used for studying the equilibrium of five concurrent and non-concurrent forces in a threedimensional system.

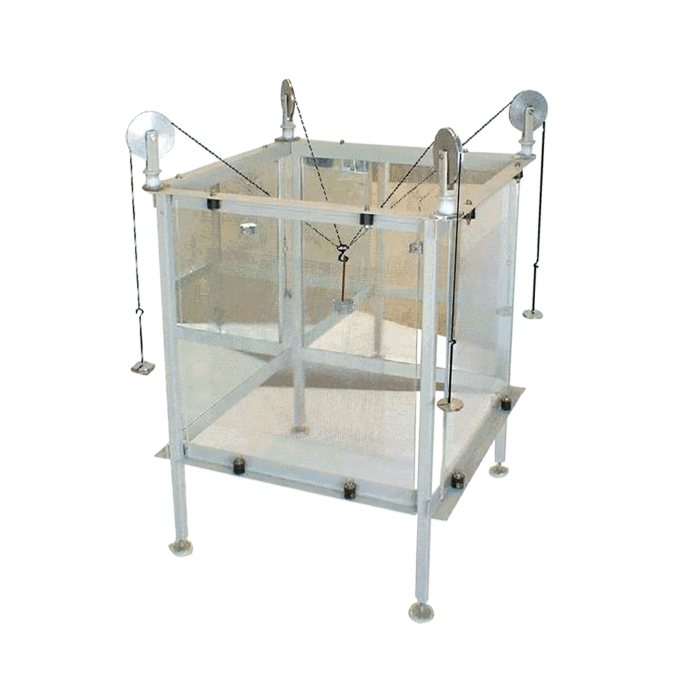

A rigid box frame has four swiveling pulleys at the top corners and leveling screws at the legs. Four cords, each with a load hanger outside the frame, pass over the pulleys and meet inside the frame concurrently or non-concurrently with an additional cord between two joints. A vertical load with a cord is applied at one of the joints. Each cord is marked out a 100 mm length. Two mirrors are attached on two adjacent side walls and transparent plates with transparent graph grids are attached on the other two side walls. By aligning each marked cord to the mirror, its coordinates in space can be measured.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Equilibrium of a set of forces acting in a three-dimension system
- Equilibrium of concurrent and non-concurrent forces
TECHNICAL DATA
| Frame dimensions | 500 mm wide x 500 mm long x 600 mm high |
| Two rings cord | 1 |
| Cords | 4 |
| Load hangers with cord | 6 |
| Weights | 1 lot |
| Software for data display and analysis by computer (separately supplied). | |
