Compact Series and Parallel Pump Test Set – Motor Dynamometer
This is a self-contained bench top unit for studying the series and parallel pumps characteristics. The unit consists of two sets of centrifugal pump and motor dynamometer for measuring TRUE pump input power. A storage tank is on a steel…
Description
This is a self-contained bench top unit for studying the series and parallel pumps characteristics.

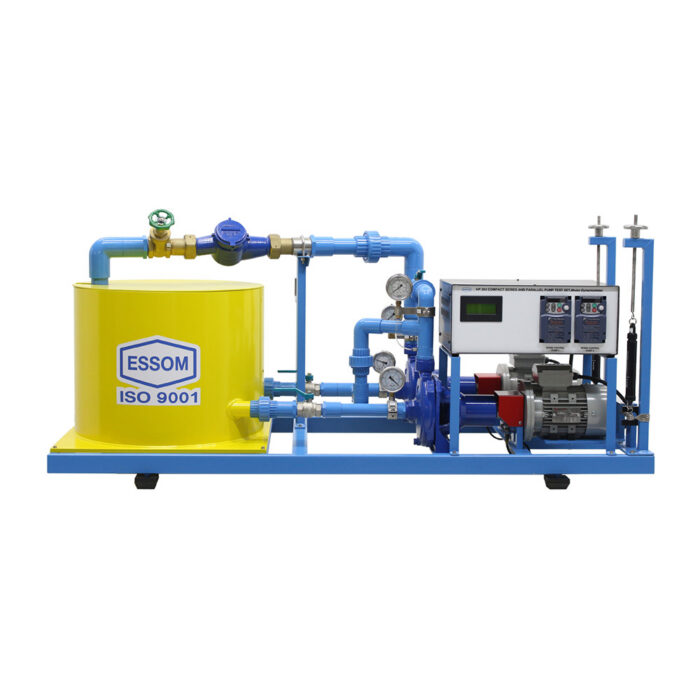

The unit consists of two sets of centrifugal pump and motor dynamometer for measuring TRUE pump input power. A storage tank is on a steel base. Measuring instruments by manipulating flow control valves. Each pump can be operated individually or both pumps connected in series or parallel.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Flow rate vs head at various speeds for individual pump.
- Flow rate vs head at a fixed speed for two pumps connected in series or parallel.
- Power input, output and true efficiency at various speeds for individual pump and two pumps connected in series or parallel.
TECHNICAL DATA
| Pump ratings | |
| – Maximum flow rate | 80 Lpm |
| – Maximum head | 18 m water |
| Motor dynamometers | 2 ea. |
| Speed control | Inverter |
| Measuring instruments | |
| – Torques | Spring balances |
| – Flow rate | Water meter and stop watch |
| – Pressures | Pressure gauges at pump suction and discharge |
| – Sensors with digital display | Speed for each motor dynamometer |
| Software for data display and analysis by computer (separately supplied). | |
| Power supply | 220 V, 1 Ph, 50 Hz. Other power supply is available on request. |
