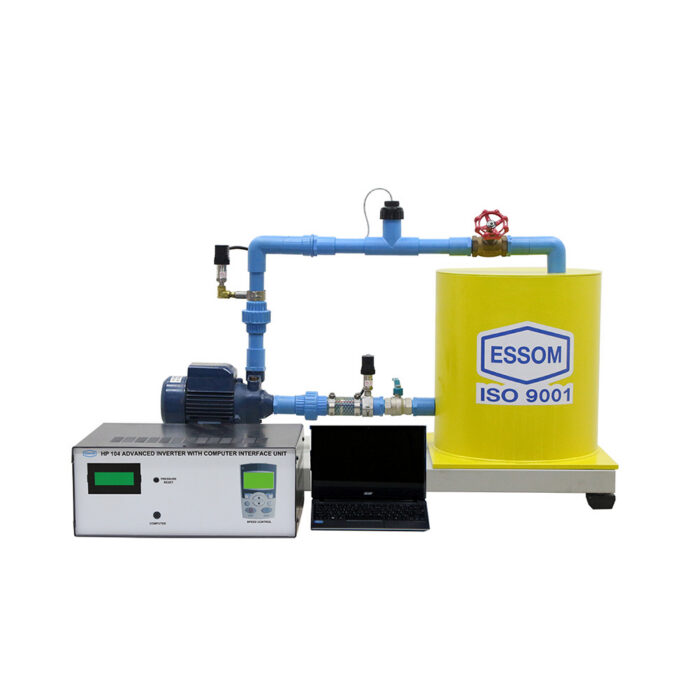

Turbine Pump Demonstration Unit – Computer Interface
This is a bench top unit for studying the turbine (regenerative) pump characteristics with data display and analysis by computer.
The unit consists of an industrial turbine pump with a motor, a PVC storage tank on a steel base, software and sensor.
HP 104 Advanced inverter with computer interface unit is required but separately supplied.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Flow rate vs head at various speeds.
- Pump input, output and overall efficiency at various speeds.
TECHNICAL DATA
| Pump ratings | |
| – Maximum flow rate | 35 Lpm |
| – Maximum head | 30 m water |
| Speed control | HP104 (separately supplied) |
| Sensors with digital display |
|
| Software for data display and analysis by computer (separately supplied). | |
