Compact Turbine Pump Test Set – Variable Speed
This is a self-contained bench top unit for studying the turbine pump flow rate vs head at various speeds.

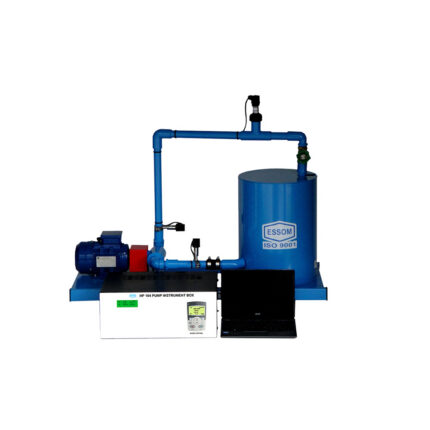

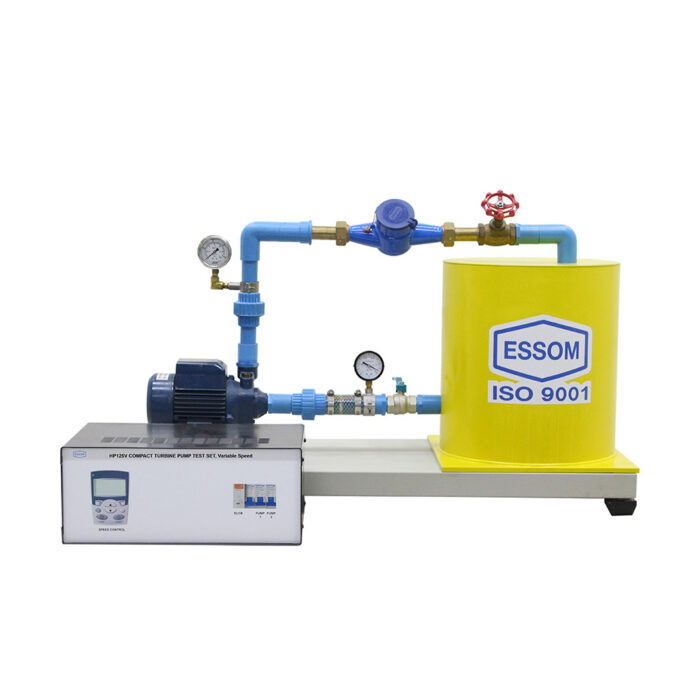

The unit consists of a storage tank and a turbine pump with motor on a steel base, advanced inverter and measuring instruments.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Flow rate vs head.
- Pump input, output and overall efficiency at various speed.
TECHNICAL DATA
| Pump ratings | |
| – Maximum flow rate | 35 Lpm |
| – Maximum head | 30 m water |
| Speed control | Advanced inverter |
| Measuring instruments | |
| – Pressure | Pressure gauges at pump suction and discharge |
| – Flow rate | Water meter and stop watch |
| – Speed and motor input power indicator | Advanced inverter |
| Software for data display and analysis by computer (separately supplied). | |
| Power supply | 220 V, 1 Ph, 50Hz. Other power supply is available on request. |
