Deflection of Curved Bars

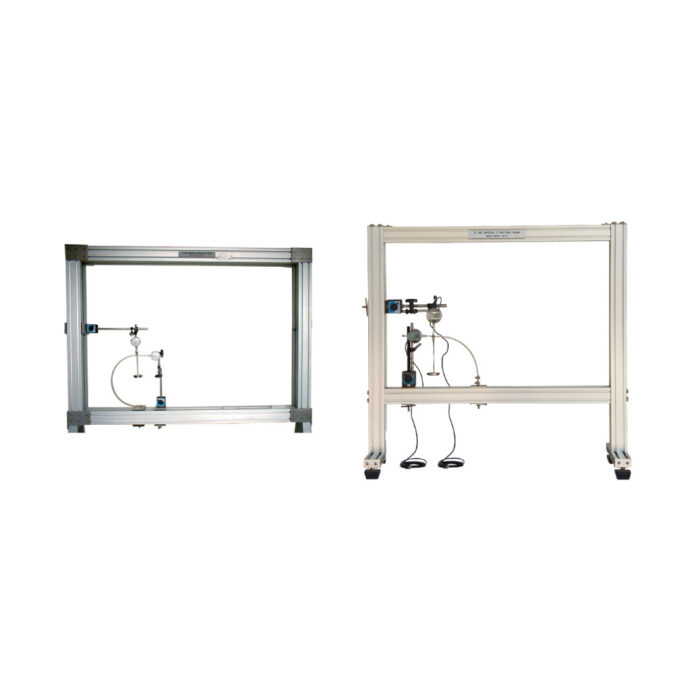

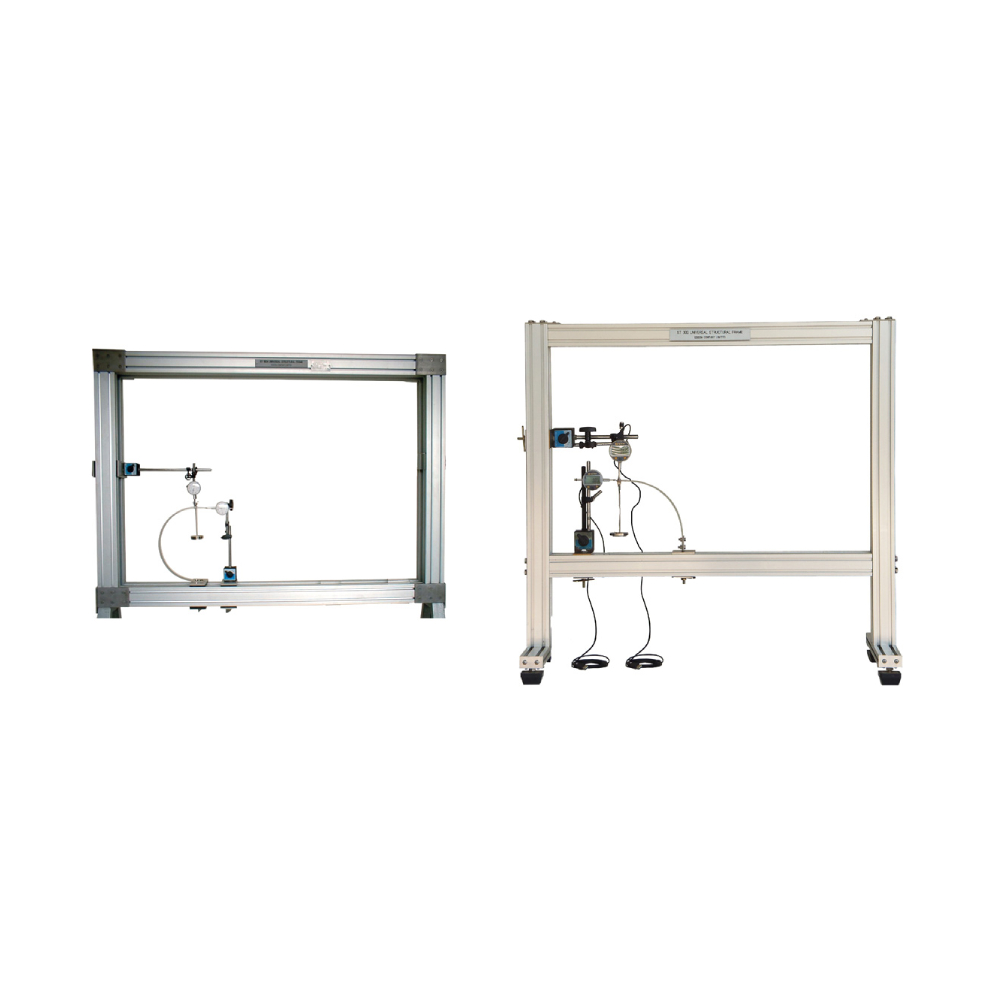

This equipment is used for measurement of horizontal and vertical and vertical components of curved bar deflections, and comparison of measured values with theoretical ones. It is to be used with ST300 Universal Structural Frame (separately supplied).

The apparatus consists of curved bar clamped at one end. Load is applied and deflections are measured on the free end by dial indicators.

Instruction manual is also included.

TYPICAL EXPERIMENTS
  • Investigation of the relationship between load, horizontal deflection and vertical deflection
  • Elastic bending.
TECHNICAL DATA
Curved bars, Steel 19 x 3 (approx.) mm cross section
  • Quadrant
  • Semicircle
  • Ring
Load hanger 1
Weights 1 lot
ST131 Dial Indicators 2
Software for data display and analysis by computer (separately supplied).
In Stock
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0
SKU: ST365 Category: Tag:
100% Original and quality

Additional information

Brand

Essom
