Deflections and Reactions of Frames

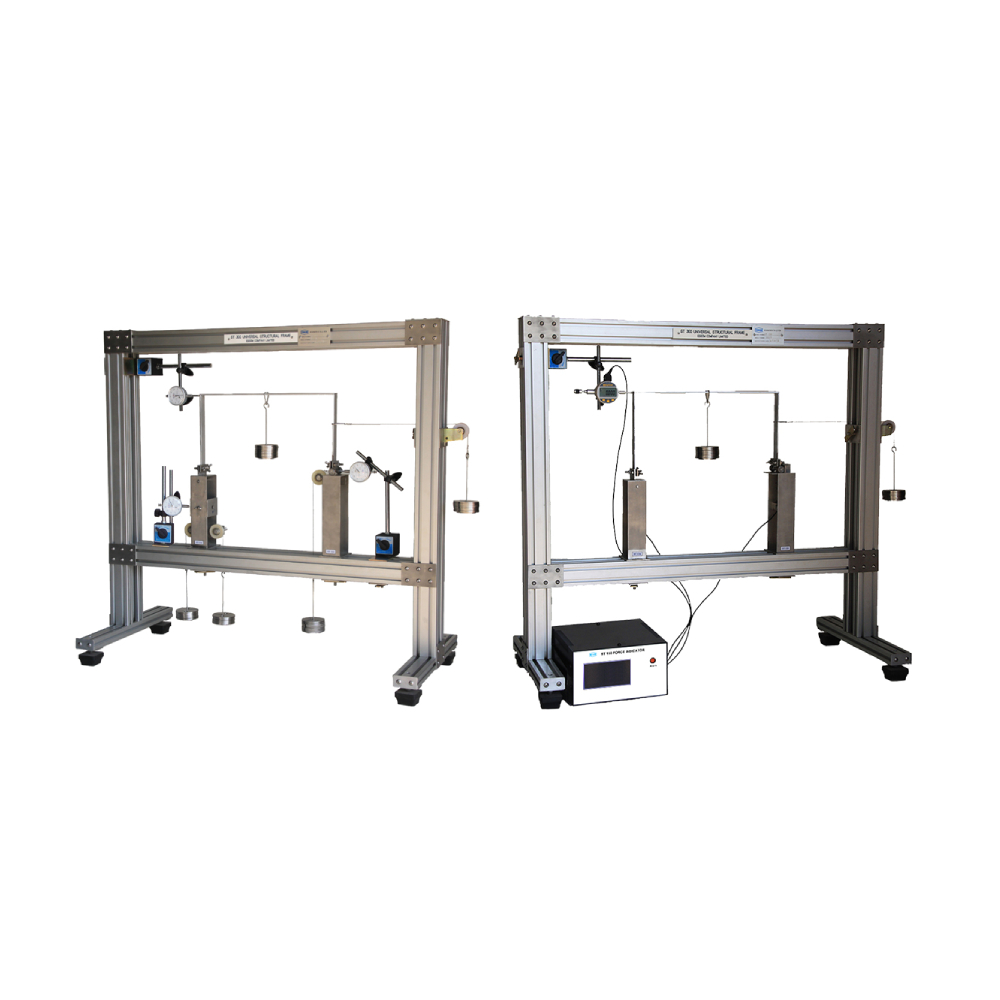

This equipment allows comparison of experimental and theoretical deflections and reactions of a rectangular portal and an “S” frame when loads are applied. It is to be used with ST300 Universal Structural Frame (separately supplied). The frame is made of…
This equipment allows comparison of experimental and theoretical deflections and reactions of a rectangular portal and an “S” frame when loads are applied. It is to be used with ST300 Universal Structural Frame (separately supplied).
The frame is made of steel bar with a fixed leg while the other leg can be moved horizontally. Loads are applied vertically and/or horizontally. Moment at the frame fixed leg is measured by a moment support and a horizontal force on the frame free leg is measured by a horizontal force support. Deflection of the frame is measured by a dial indicator.
Instruction manual is also included.
- Horizontal reaction and fixing moment due to a varying single point load
- Comparison of behavior to simplified theory
| Portal frame | 200×400 mm with 19×6 mm (approx.) section |
| “S” frame | Center limb 300 mm and all other members 150 mm |
| ST115 Moment Support | 1 |
| ST119 Horizontal Force Support | 1 |
| Load hangers | 2 |
| Weights | 1 lot. |
| Pulley set | 1 |
| ST131 Dial Indicators | 3 |
| Software for data display and analysis by computer (separately supplied). | |
| Brand |
Essom |
|---|
