Additional information
| Brand | Essom |
|---|

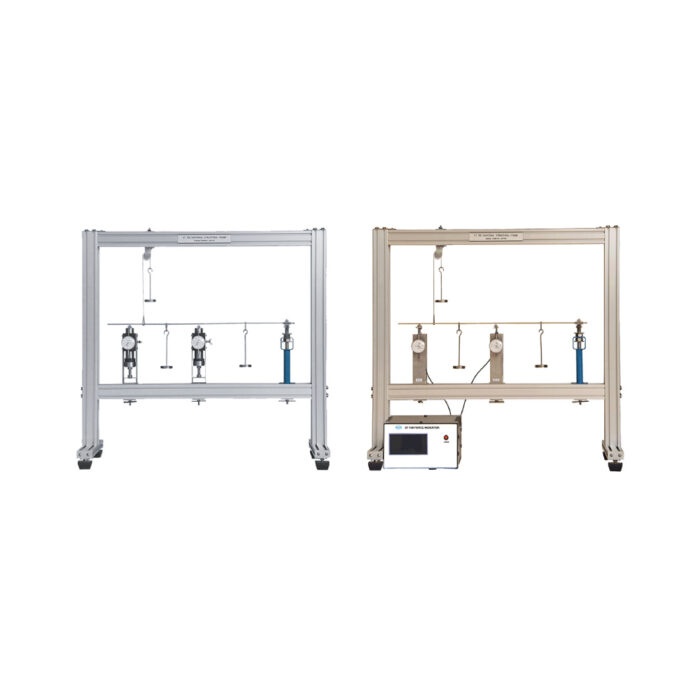

Continuous Beam
The equipment is used for measurement of the reactions of a two-span continuous beam with and without settlement of a support. It is to be used with ST300 Universal Structural Frame (separately supplied).
The equipment consists of a two-span continuous beam supported by two vertical force supports and a built-in/knife edge support. The settlement of each load measuring support is measured by a dial indicator and can be simulated by height compensation mechanism. Three movable load hangers with a set of weights for downward as well as upward loading are provided. Each beam deflection is measured by a dial indicator.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Principle of moments.
- Reactions for a point load along a simply supported beam.
- Reactions for a continuous beam.
- Deflection of a simply supported beam.
TECHNICAL DATA
| Test beam | |
| – Steel | 2 |
| – Aluminum | 1 |
| – Brass | 1 |
| ST 113 Built-in/Knife Edge Support | 1 |
| ST 124 Vertical Force Supports | 2 |
| Pulley set | 1 |
| Cord | 1 |
| Load hangers | 3 |
| Weights | 1 lot |
| ST131 Dial Indicators | 2 |
| Software for data display and analysis by computer (separately supplied). | |
