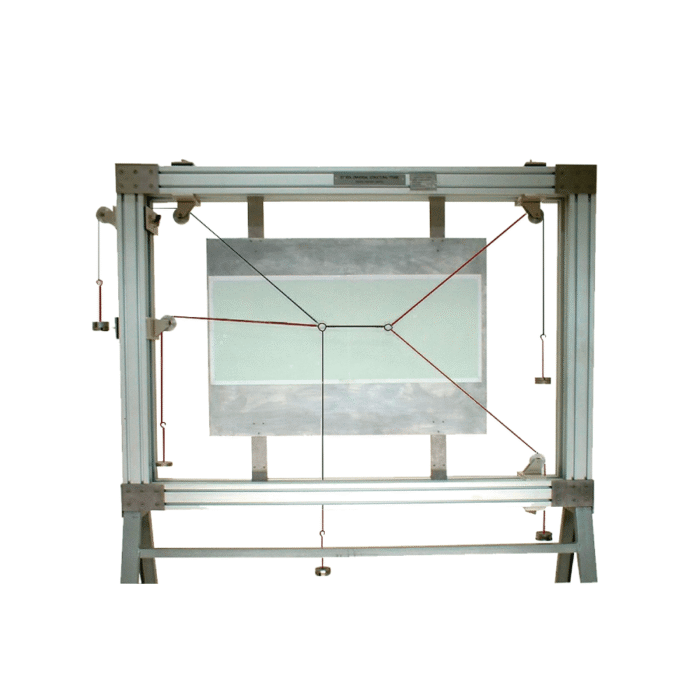

Equilibrium of Forces
The equipment is used for studying the equilibrium of concurrent and non-concurrent forces in a single plane. It is to be used with ST300 Universal Structural Frame (separately supplied).
Pulleys are fitted around the frame and multi directional forces are produced with nylon cords by weight hangers and weights. A graph paper (not supply) attached to the board is used for recording the lines of forces. Two rings cord for concurrent or non-concurrent forces and a device for marking the lines of the cords are provided.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Equilibrium of a set of forces acting in a vertical plane
- Equilibrium of concurrent and non-concurrent forces
TECHNICAL DATA
| Force board | 300 x 500 mm |
| Two rings cord | |
| Cord marking pen | |
| Pulley set | 1 set |
| Nylon cords | 6 |
| Load hangers | 6 |
| Weights | 1 lot. |
| Software for data display and analysis by computer (separately supplied). | |
