Equilibrium of a Beam

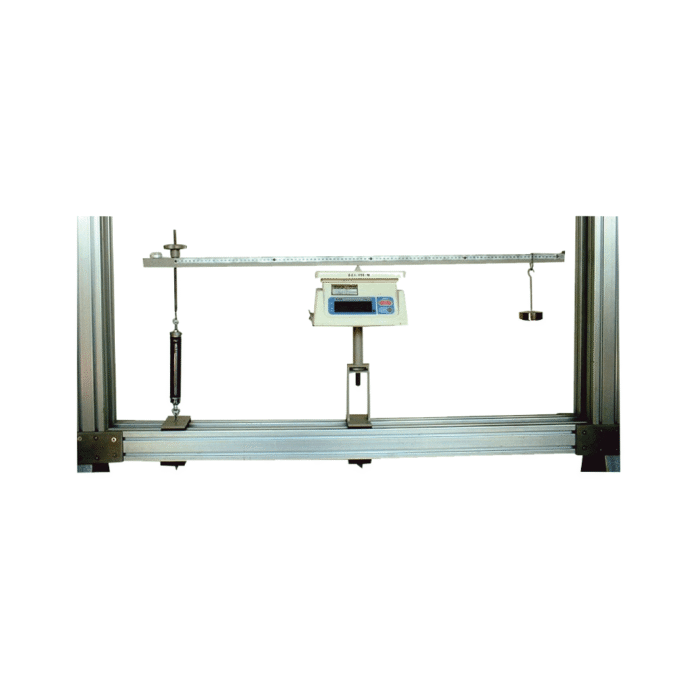

This equipment is used for measurement of support reactions of a simple beam or cantilever in equilibrium under different loads. It is to be used with ST305 Universal Base Frame or ST300 Universal Structural Frame (separately supplied).

The beam is supported by two weighing machines with knife edges fixed on to the pan. Load hanger with weights are hung on the beam between the two supports. In the case of a cantilever, a spring balance and a weighing machine are used.

Instruction manual is also included.

TYPICAL EXPERIMENTS
  • Principle of Moments.
  • Reactions for a point load along a beam.
TECHNICAL DATA
Test beam with scale 700 mm x 1 mm reading
Digital weighing machines 2
Spring balance 1
Load hangers 3
Weights 1 lot.
Software for data display and analysis by computer (separately supplied).
In Stock
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0
SKU: ST320 Category: Tag:
100% Original and quality

Additional information

Brand

Essom

Related products

  • labts.co.id contiuous beam
    • labts.co.id contiuous beam
    • labts.co.id contiuous beam
    • labts.co.id contiuous beam
    Structures and Accessories

    Continuous Beam

    The equipment is used for measurement of the reactions of a two-span continuous beam with and without settlement of a support. It is to be used with ST300 Universal Structural Frame (separately supplied).

    The equipment consists of a two-span continuous beam supported by two vertical force supports and a built-in/knife edge support. The settlement of each load measuring support is measured by a dial indicator and can be simulated by height compensation mechanism. Three movable load hangers with a set of weights for downward as well as upward loading are provided. Each beam deflection is measured by a dial indicator.

    Instruction manual is also included.

    TYPICAL EXPERIMENTS
    • Principle of moments.
    • Reactions for a point load along a simply supported beam.
    • Reactions for a continuous beam.
    • Deflection of a simply supported beam.
    TECHNICAL DATA
    Test beam
     – Steel 2
     – Aluminum 1
     – Brass 1
    ST 113 Built-in/Knife Edge Support 1
    ST 124 Vertical Force Supports 2
    Pulley set 1
    Cord 1
    Load hangers 3
    Weights 1 lot
    ST131 Dial Indicators 2
    Software for data display and analysis by computer (separately supplied).
    (0 reviews)
  • universal structural frame www.labts.co.id
    Structures and Accessories

    Universal Structural Frame

    This is a basic bench top type twin rectangular frame of 30 x 60 mm aluminum profile with adjustable footings. Optional structural models and accessories are attached to the twin frame by clamps to support specific experiments in the field of structural mechanics especially where underhung and sidehung weights are required.

    TECHNICAL DATA
    Dimensions WxLxH 450 x 970 x 980 mm
    Twin member space 30 mm
    Window opening 850 x 650 mm
    Maximum load capacity 2.5 kN



    Net (unassembled) Shipping Dimensions WxLxH 15 x 85 x 15 cm.
    Net Weight Approx. 14 kg.



    COMPUTER ASSIST SET
    A number of accessories can be replaced by digital units. A Computer Assist set is offered for the case that digital accessories with output signals are used. In this case, a computer interface unit is included.



    SOFTWARE
    This software can accommodate both manually key-in inputs and inputs from computer interface unit. The software includes test data table, formula and calculated data.
    (0 reviews)
