Educational Wind Turbine
The unit is for a study of wind turbine characteristics. The turbine consists of axial flow fan with speed control and flare entrance, a wind turbine, DC generator with resistance load, dynamometer, and measuring instruments. The turbine and blade angle…
Description

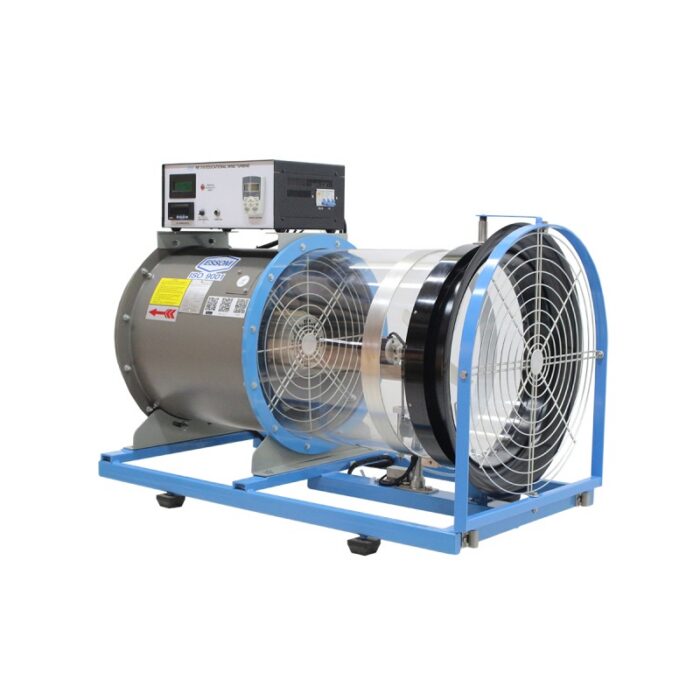

The unit is for a study of wind turbine characteristics. The turbine consists of axial flow fan with speed control and flare entrance, a wind turbine, DC generator with resistance load, dynamometer, and measuring instruments. The turbine and blade angle can be adjusted using a special device. The unit can also be used for testing different blade design by students.
TYPICAL EXPERIMENTS
- Calculation of wind power.
- Turbine output VS wind speed.
- Turbine efficiency.
- Effect of blade angle.
- Effect of number of blades.
TECHNICAL DATA
| Fan | |
| – Diameter | 500 mm inside diameter |
| – Maximum wind speed | 20 mps. |
| Wind speed control | Inverter. |
| Turbine casing | Steel, 500 mm inside diameter x 500 mm long. |
| Wind turbine wheel | 1 ea. with spare blades. |
| Turbine blade angle setting device | 1 ea. |
| Generator | 24VDC, 120 W. |
| Electrical load | Resistive loads. |
| Dynamometer | Mechanical |
| Turbine output | |
| – Maximum speed | 4400 rpm. |
| – Maximum mechanical power | 130 W. |
| Measuring instruments | |
| – Wind speed | Pitot tube |
| – Sensor with digital display |
|
| Power supply | 220V 1 Ph 50 Hz. Other power supply is available on request. |
Additional information
| Brand |
Essom |
|---|
