Fluid Mixing Tank

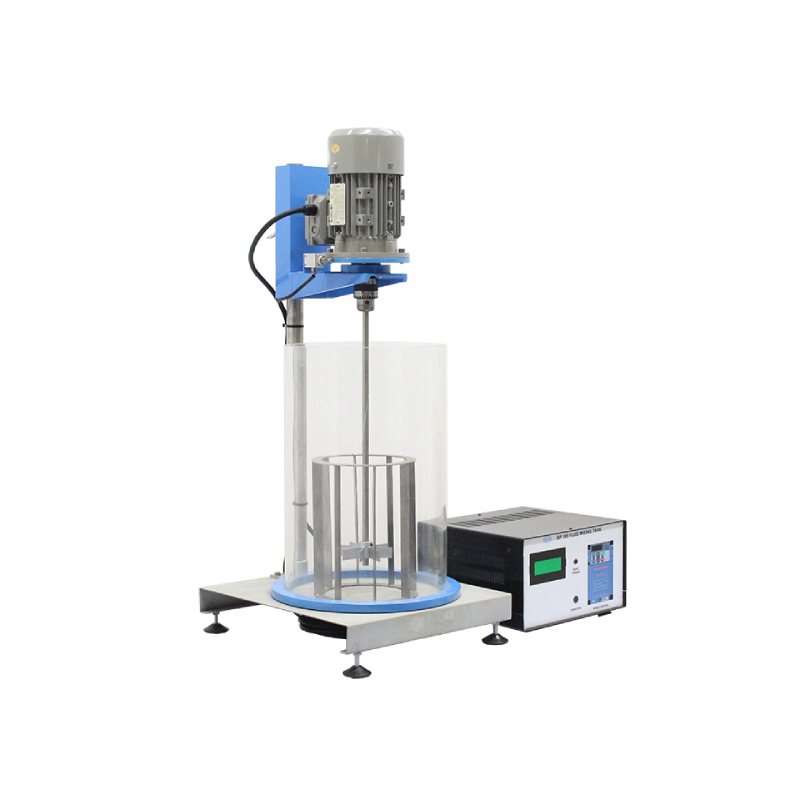

The fluid mixing tank is a bench top unit for a study of mixing two materials.
The unit consists of a mixing tank with removable baffles and a drain valve. A variable speed agitator is mounted on a column with base and can be moved vertically to facilitate impeller installation or removal. Various types of impellers are provided.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Mixing/flow visualization.
- Power/speed of different impellers.
- Mixing of solid/liquid suspensions.
- Mixing of two immiscible liquids.
- Mixing quality vs mixing time.
- Prediction of power for large scale mixers.
TECHNICAL DATA
| Mixing tank | |
| – Materials | Acrylic |
| – Capacity | Approx. 30 L |
| Agitator speed | Upto 900 rpm |
| Speed control | Inverter |
| Digital display |
|
| Impellers | |
| – Turbine blade | 1 ea. |
| – Propeller blade | 1 ea. |
| – Flat blade paddles | 1 ea. |
| .- Flat blade paddles with holes | 2 ea. |
| Software for data display and analysis by computer (separately supply) | |
| Power supply | 220 V, 1 Ph, 50 Hz. Other power supply is available on request. |
