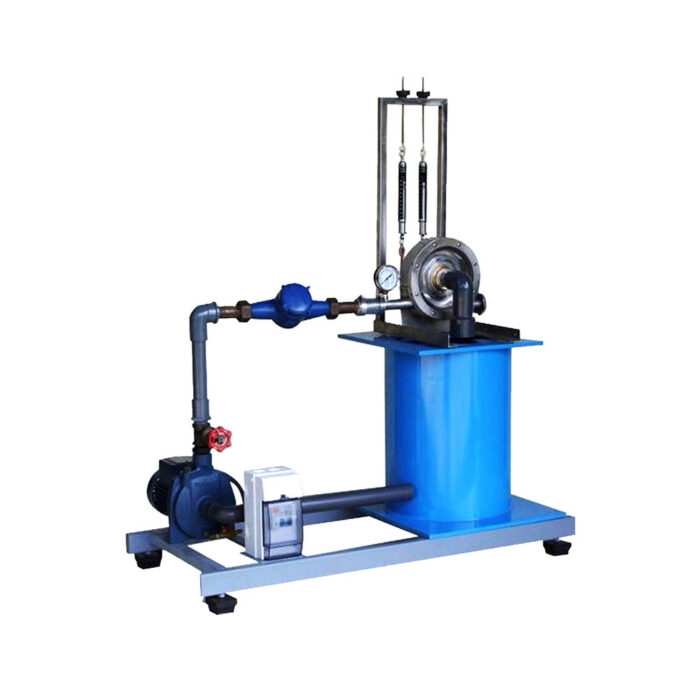

Mini Francis Turbine Test Set
This is a self contained bench top set for studying the Francis turbine characteristics under various flow rates and heads.
The unit consists of a storage tank on a steel base, a pump, a mini Francis turbine, a dynamometer, and measuring instruments.
The adjustable guide vanes direct water spirally to the runner.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Torque vs speed at various heads and flow rates.
- Power output vs speed for various heads and flow rates.
- Efficiency vs speed for a given head and flow rate.
- Racing characteristics.
TECHNICAL DATA
| Turbine | |
| – Construction |
|
| – Ratings | Maximum power over 25 W |
| Pump ratings | |
| – Motor | 0.55 kW |
| Dynamometer | Mechanical brake |
| Measuring instruments | |
| – Torque | Spring balances |
| – Speed | Portable tachometer |
| – Flow rate | Water meter and stop watch |
| – Pressure | Pressure gauge |
| Software for data display and analysis by computer (separately supplied). | |
| Power supply | 220 V, 1 Ph, 50 Hz. Other power supply is available on request. |
