Mini Kaplan Turbine Demonstration Unit, Computer Interface

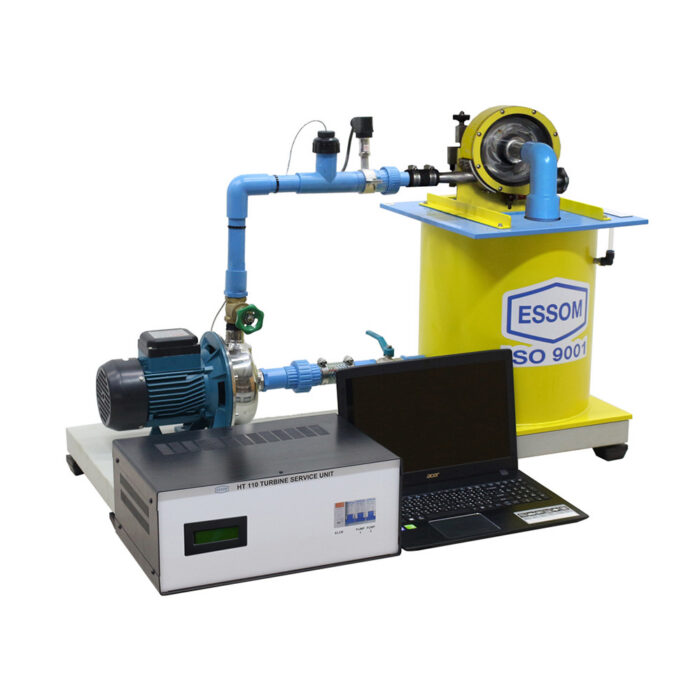

This is a mini Kaplan turbine for studying the turbine characteristics with data analysis by computer. The unit consists of a mini Kaplan turbine with a dynamometer, output power sensors and software. The turbine adjustable guide vanes direct water helically to the runner.
The unit is to be used with HT110 Mini Turbine Service Unit or HB100N Hydraulic Bench (Neo) with optional accessories. Both are separately supplied.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Torque vs speed at various heads and flow rates.
- Power output vs speed for various heads and flow rates.
- Efficiency vs speed for a given head and flow rate.
- Racing characteristics.
TECHNICAL DATA
| Construction |
|
| Ratings | Maximum power over 15 W |
| Dynamometer | Mechanical brake |
| Sensors with digital display | Torque and speed |
| Software for data display and analysis by computer (separately supplied). | |
100% Original and qualityRelated products
-
Hydraulic Studies and AccessoriesPitot Tube Apparatus
This apparatus is for a study of velocity distribution across pipe section for a water flow in pipe, and for measurement of flow velocity. It is to be used with Hydraulics Bench i.e. HB100 or HB100N (separately supplied).
The apparatus consists of a total head tube and a static head tube for the Pitot, clear acrylic pipe, inlet and outlet, and an inclined manometer. The total head tube can be moved up or down vertically with a scale for indication of the tube position. Differential pressure is measured by a multiple inclination manometer.
TYPICAL EXPERIMENTS- Accuracy of pitot tube meters
- Losses and k value
- Calculation of the coefficient of discharge
TECHNICAL DATAAcrylic tube 34 mm. diameter. Total head probe 1 ea. Inclined water manometer 0-450 x 1 mm graduation. Software for data display and analysis by computer (separately supplied). (0 reviews) -
Turbine Test SetTurbine Service Unit
This service unit provides a water supply and input power measurement for the mini turbine demonstration unit.
The unit consists of a pump and a storage tank on a steel base, pressure and flowrate sensors, and an interface box. The box includes power supply to the motor and indicator for pressure, flowrate, torque and speed. It also provides, interface ports to the sensors and computer.
Instruction manual is also included.
TECHNICAL DATAPump ratings – Maximum flow rate Up to 80 Lpm Sensors with digital display - Pressure
- Flow rate
Computer interface unit 4 channels Power supply 220 V, 1 Ph, 50 Hz. Other power supply is available on request. (0 reviews)
