Mini Pelton Turbine Test Set
This is a self contained bench top set for studying the Pelton turbine characteristics under various flow rates and heads.

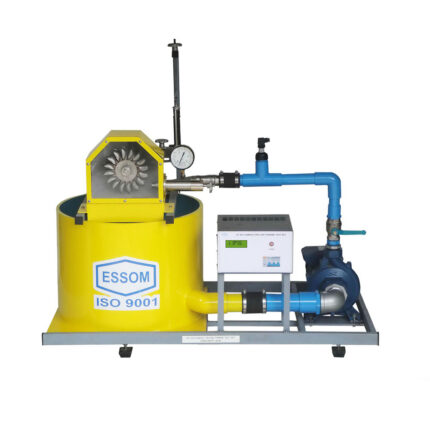

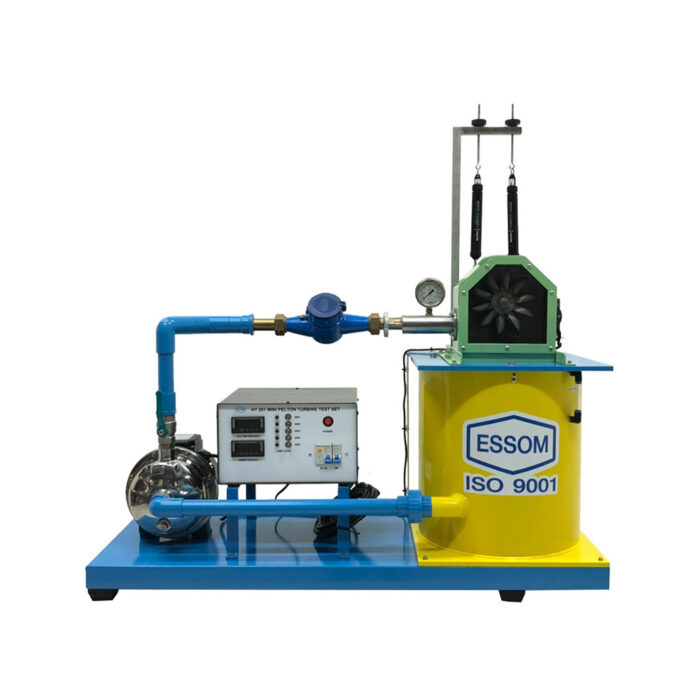

The unit consists of a storage tank on a steel base, a pump, a mini Pelton turbine, a dynamometer, and measuring instruments. The adjustable nozzle directs the water jet to the runner buckets.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Torque vs speed at various heads and flow rates.
- Power output vs speed for various heads and flow rates.
- Efficiency vs speed for a given head and flow rate.
- Racing characteristics.
TECHNICAL DATA
| Turbine | |
| – Construction | Stainless steel runner, nozzle, and casing with transparent window |
| – Ratings | Maximum power over 40 W |
| Pump ratings | |
| – Motor | 0.55 kW |
| Dynamometer | Mechanical brake |
| Measuring instruments | |
| – Torque | Spring balances |
| – Speed | Portable tachometer |
| – Flow rate | Water meter and stop watch |
| – Pressure | Pressure gauge |
| Software for data display and analysis by computer (separately supplied). | |
| Power supply | 220 V, 1 Ph, 50 Hz. Other power supply is available on request. |
