Multi Pump Test Set: Motor Dynamometer

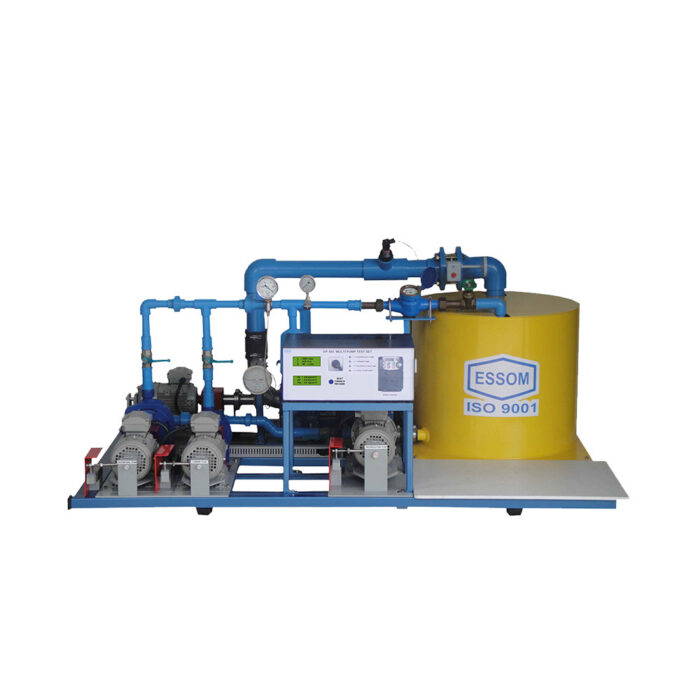

Multi Pump Test Set: Motor Dynamometer is a self-contained bench top set for studying the characteristics for various types of pumps.

Multi Pump Test Set: Motor Dynamometer. This is a self-contained bench top set for studying the characteristics for various types of pumps.

The unit consists of four different types of pumps namely-centrifugal, turbine, reciprocating and axial flow pump, a common storage tank and measuring instruments. Each pump is driven by a motor dynamometer for measuring TRUE pump input power. Speed control is by an inverter. By manipulating flow control valves and a selector switch, each pump can be operated individually.

Instruction manual is also included.

TYPICAL EXPERIMENTS

Flow rate vs head at various speeds.
Pump input, output, and true efficiency at various speeds.
Effect of pulse chamber for reciprocating pump.

TECHNICAL DATA

Pumps ratings:
– Centrifugal pump with maximum flow rate 80 Lpm and maximum head 18 m water
– Turbine pump with maximum flow rate 30 Lpm and maximum head 30 m water
– Reciprocating pump with reduction gear, maximum flow rate 15 Lpm at 300 rpm and maximum head 30 m water
– 69 mm in axial flow pump with metal impeller, guide vanes, shaft and casing, maximum flow rate 400 Lpm and maximum differential head 1.5 m water at 2900 rpm.
Reciprocating pump accessories	Dash pot for dynamometer arm damping Pulse chambers with discharge isolating valve Pressure relief valve
Speed control	Inverter for controlling pump speeds alternatively by selector switch
Motor dynamometer for all pumps
Selector switch	For operations of each pump alternatively
Measuring instruments
– Flow rate	Water meter and stop watch for centrifugal, turbine and reciprocating pumps
– Pressures	Pressure gauge for centrifugal, turbine and reciprocating pumps at common suction and outlet Differential pressure gauge for axial flow pump
– Sensors with digital display	Speed for each motor dynamometer Torque for each motor dynamometer Flow rate for axial flow pump
Software for data display and analysis by computer (separately supplied).
Power supply	220 V, 1 Ph, 50 Hz. Other power supply is available on request.
