Solar Electricity
This is a bench mounted unit designed for a study of electricity generation form sunlight, storage and use of energy. The unit consists of a solar panel on a tilting and rotating base, an inverter, a regulator, a storage battery,…
Description

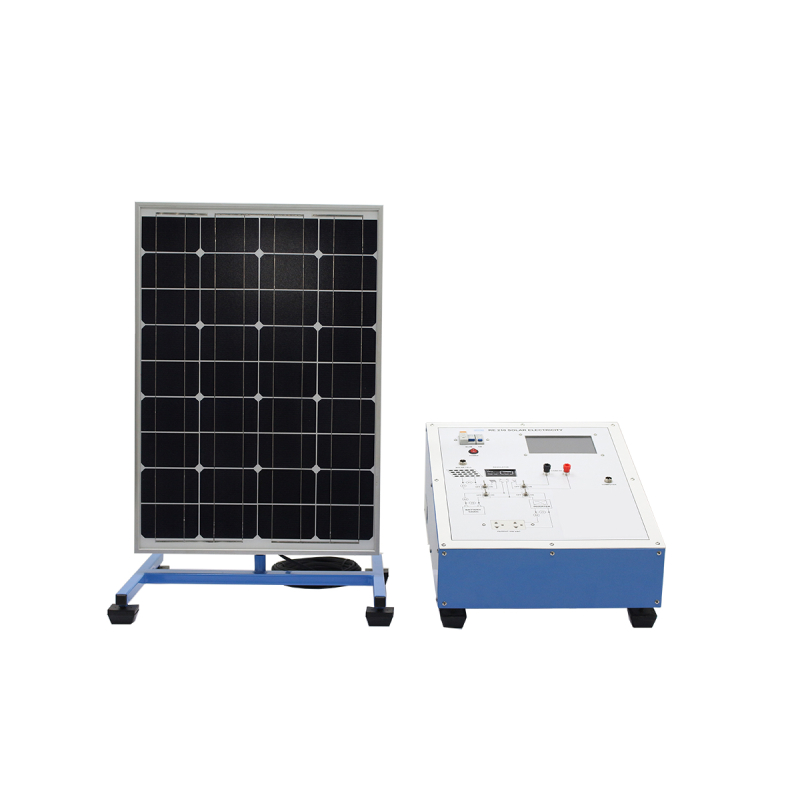

This is a bench mounted unit designed for a study of electricity generation form sunlight, storage and use of energy. The unit consists of a solar panel on a tilting and rotating base, an inverter, a regulator, a storage battery, load circuit, a fan, lamp load, voltmeters and ammeters. The panel is mounted on a tilting and rotating base.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Current-voltage characteristics of solar panel.
- Effect of shading on performance.
- Effect of panel inclination on performance.
- Working principles of load regulator (current reversal, low unloading and overloading protection) Principles of inverter.
TECHNICAL DATA
| Solar panel | Monocrystalline, 60 W rating. | |
| Regulator | 1 ea. | |
| Battery | 1 ea. | |
| Inverter | 1 ea. | |
| Rheostat | 1 ea. | |
| Voltmeters | DC(1) and AC(1) | |
| Ammeters | DC(1) and AC(1) | |
| Lamp loads | 5 ea. | |
| Others | Power outlet and lead wires. | |
| Software for data display and analysis by computer (separately supplied). | ||
| Power supply | 220V, 1 Ph, 50 Hz. | |
