Area Moment Method

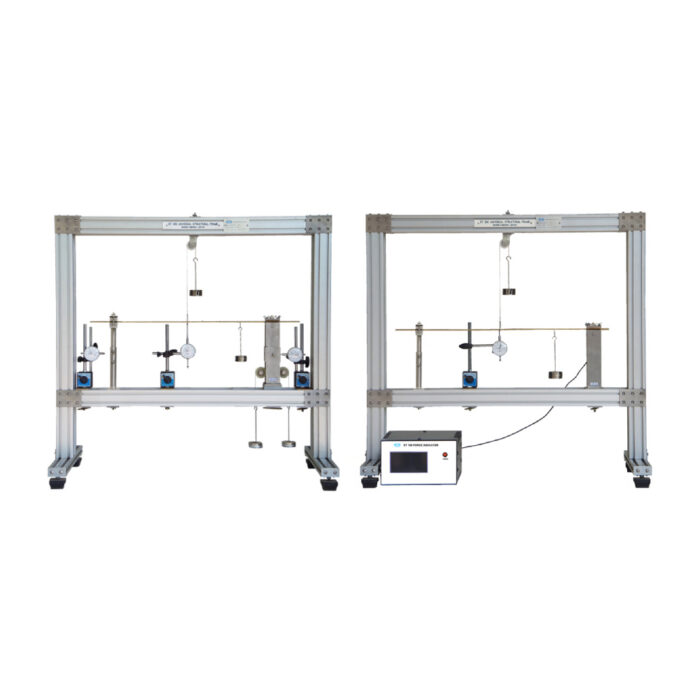

The equipment is used for verification of the deflections and slopes of a beam by area-moment method. It is to be used with ST300 Universal Structural Frame (separately supplied).
The beam has a moment support and one built-in / knife edge support. The supports allow longitudinal travel of the beam. The moment support has a rotating arm which is monitored by a dial indicator. The moment is applied and measured by load on the rotating arm. The beam deflection is measured by a dial indicator.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Deflections and slopes of a beam by area-moment method
- Shape of a deflected beam.
TECHNICAL DATA
| Test beam | |
| – Steel | 2 |
| – Aluminum | 1 |
| – Brass | 1 |
| ST 115 Moment Support | 1 |
| ST 112 Built-in/Knife edge Support | 1 |
| Pulley set | 1 |
| Hanger slider | 1 |
| Cord | 1 |
| Load hangers | 2 |
| Weights | 1 lot. |
| ST131 Dial Indicator | 3 |
| Software for data display and analysis by computer (separately supplied). | |
100% Original and qualityRelated products
-
Structures and AccessoriesBending Moment
This equipment is used for measurement of bending moment on a section of a beam from which comparison with theoretical values can be made. It is to be used with ST305 Universal Base Frame or ST300 Universal Structural Frame (separately supplied).
The beam has two parts with a ball bearing hinge at the joint. An underhung spring balance holds the hinge in
compression, hence resists bending moment. The beam rests on two round supports. Load hangers and weights slide along the beam.Instruction manual is also included.
TYPICAL EXPERIMENTS- Visual demonstration of the Shear Force and Bending Moment at a cut section in a beam
- Variation in bending moment for variations in load, load position and load arrangement
- Comparison of experimental results with theoretical values and bending moment diagrams
TECHNICAL DATABeam length 700 mm ST111 Round Supports 2 Spring balance 1 Load hangers 3 Weights 1 lot Software for data display and analysis by computer (separately supplied). (0 reviews) -
Structures and AccessoriesThree Hinged Arch
This equipment is used for measurement of horizontal abutment thrust for symmetrical and unsymmetrical three hinged arch using a combination of concentrated and distributed loading. It is to be used with ST300 Universal Structural Frame (separately supplied).
The metal alloy arch is hinged at the middle with symmetrical and unsymmetrical spans. One end is hinged while the other has bearings on a horizontal force support with means of applying horizontal abutment thrust using a pulley and a load hanger. The center hinge has a needle roller bearing. A two-roller load and weights for uniform load distribution are provided.
Instruction manual is also included.
TYPICAL EXPERIMENTS- Demonstration of the characteristics of a three-pinned arch
- Examination of the relationship between applied loads and horizontal thrust
- Comparison of behavior to simplified theory
TECHNICAL DATAArch Aluminum, 75 mm wide Span 600 mm and 450 mm ST119 Horizontal Force Support 1 ST131 Dial Indicator 1 Rolling Loads 2 Weight for load distribution 1 lot. Software for data display and analysis by computer (separately supplied). (0 reviews)
