Additional information
| Brand | Essom |
|---|

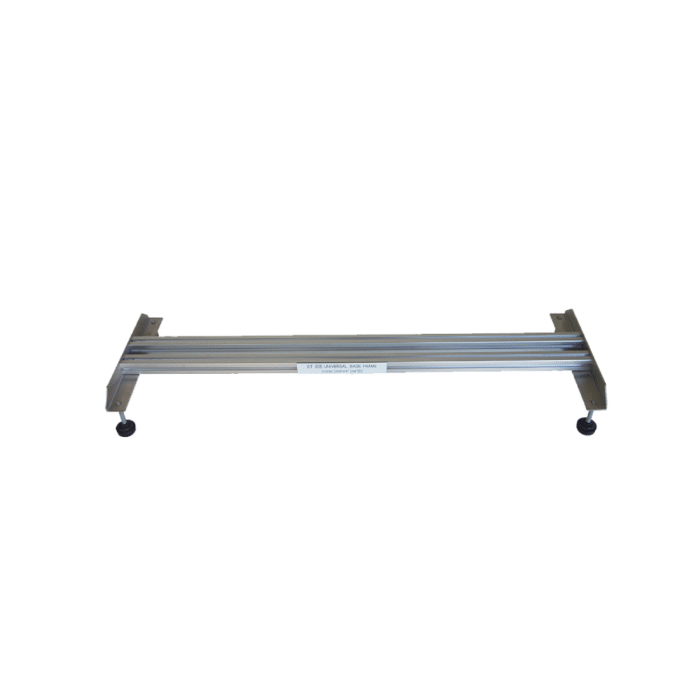

Universal Base Frame
This is a bench top base frame made from 30 x 30 mm aluminum profile with stainless steel support and adjustable footings. The base is a twin member on which optional structural models and accessories are attached. This frame is more economical than ST300 Universal Structural Frame, and is intended to replace ST300 for many experiments in structural mechanics where underhung and side hung are not required.
TECHNICAL DATA
| Dimensions WxLxH | 300 x 950 x 100 mm |
| Twin member space | 30 mm |
| Net (unassembled) Shipping Dimensions WxLxH | 6 x 95 x 10 cm. |
| Net Weight | Approx. 4 kg |
| COMPUTER ASSIST SET | |
|---|---|
| A number of accessories can be replaced by digital units. A Computer Assist set is offered for the case that digital accessories with output signals are used. In this case, a computer interface unit is included. |
| SOFTWARE | |
|---|---|
| This software can accommodate both manually key-in inputs and inputs from computer interface unit. The software includes test data table, formula and calculated data. |
100% Original and qualityRelated products
-
Structures and AccessoriesTorsion of Rods and Tubes
The equipment is used for the investigation of torsion and torsional rigidity in rods, and tubes. It is to be used with ST305 Universal Base Frame or ST300 Universal Structural Frame (separately supplied).
The apparatus has two columns attached to the base frame. One end of the specimen is clamped to one of the column. A lever can be clamped to the specimen at the test length from the first column for measurement of the angle of twist. A pulley for load hanging can be freely rotated in the second column. The other end of the specimen is clamped to the pulley.
Measurement of angle of twist is by a dial indicator on the arm, and of torque is by the load and pulley diameter.
Instruction manual is also included.
TYPICAL EXPERIMENTS- The relationship between specimen length, torque and angular deflection
- The behavior of specimens of different materials and cross-sections
- Comparison of angular deflection in similar hollow and solid rods.
- Polar moment of inertia.
TECHNICAL DATASpecimens, 650 mm long Rod and tube. Materials Steel and brass Columns One with fixed specimen clamp and one with rotating specimen clamp with pulley Load hanger 1 Weights 1 lot. Rotating arm 1 ST131 Dial Indicator 1 Software for data display and analysis by computer (separately supplied). (0 reviews) -
Structures and AccessoriesVirtual Work
The equipment is used for applying the principle of virtual work to the derivation of redundant reactions. It is to be used with ST300 Universal Structural Frame (separately supplied).
An elastic beam is supported at both ends by one moment support and one built-in / knife edge support. Moment support permit the application and measurement of moment and rotation. A vertical force support, is used for the case of two span continuous beam. A clamp on moment application device with a mean to counter balance the device weight is provided to apply a pure moment and measure rotation. The beam is loaded by weights. The deflection and slope of the beam can be measured by dial indicators.
Instruction manual is also included.
TYPICAL EXPERIMENTS- Principle of virtual work
- Beam deflections
- Shape of a deflected beam.
TECHNICAL DATATest beam – Steel 1 Supports - ST 115 Moment Support
- ST 124 Vertical Force Support
- ST 112 Built-in / Knife edge Support
Moment application device 0-3 Nm Pulley set 2 Cords 3 Load hangers 4 Weights 1 lot ST131 Dial Indicators 4 Software for data display and analysis by computer (separately supplied). (0 reviews)
