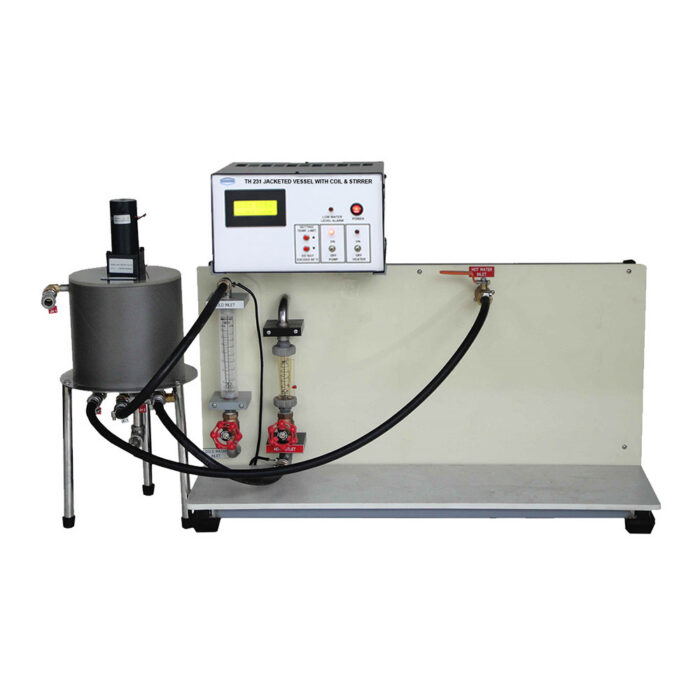

Jacketed Vessel with Coil & Stirrer
The apparatus is used for studying heat transfer with either an external jacket or an internal coil under batch wise or continuous feed conditions.
The unit consists of a jacketed vessel with a coil and stirrer and a service module. The module comprises a hot
water tank with a transfer pump and instruments for monitoring and control. Parallel or counter flow or changing from jacked vessel to coil and stirrer may be done by rearranging flexible hoses.
A cold fluid in a vessel is heated by a hot fluid in the jacket or in the coil. An adjustable speed a stirrer and baffles are provided to allow thorough mixing of the vessel contents. The content volume in the vessel can be varied by an adjustable height overflow pipe. The unit requires outside water supply. Instruction manual is also included.
TYPICAL EXPERIMENTS
- Demonstration of heat transfer for jacketed vessel with or without stirrer both continuous and batch types.
- Demonstration of heat transfer for heating coil with or without stirrer.
- Determination of heat transfer coefficient.
- Effects of flow rate and temperature difference.
- Effect of vessel content.
TECHNICAL DATA
| Stainless steel vessel | Maximum content 2.5 L |
| Stainless steel jacket | |
| Stainless steel coil. | |
| Stirrer | 0- 500 rpm |
| Service module consisting of: | |
| – Hot water pump | |
| – Heater | 3000 W |
| – Flow meters |
|
| Temperature control unit to limit temperature of hot water to not more than 80°C | |
| Software for data display and analysis by computer (separately supplied). | |
| Power supply | 220 V, 1 Ph, 50 Hz. Other power supply is available on request. |
100% Original and qualityRelated products
-
Air Flow and ThermodynamicsConcentric Tube Heat Exchanger
The apparatus is used for studying the heat transfer through a concentric tube under parallel or counter flow conditions.
The unit consists of a concentric tube heat exchanger, and a service module. The module comprises a hot water tank with a transfer pump and instruments for monitoring and control. Parallel or counter flow is by switching cold water hoses with quick coupling. The unit requires outside water supply.
Instruction manual is also included.
TYPICAL EXPERIMENTS- Demonstration of heat transfer under parallel and counter flow.
- Determination of heat transfer coefficient.
- Effects of flow rate and temperature difference.
TECHNICAL DATAConstruction arrangement 2 sections of insulated . concentric stainless steel tubes Service module consisting of: – Hot water pump. – Heater 3000 W Flow meters - Hot water
- Cold water
– Temperature control unit to limit temperature of hot water to not more than 80°C Software for data display and analysis by computer (separately supplied). Power supply 220 V, 1 Ph, 50 Hz. Other power supply is available on request. (0 reviews) -
Flow Measurement and Flow StudyPiping Loss Apparatus (Small)
This is a comprehensive unit for studying the friction losses in pipes, pipe fittings and valves at various flow rates.
All friction loss components are arranged on a water proof panel which is attached to a floor standing steel frame. The apparatus is to be used with a Hydraulics Bench (separately supplied) or an outside water supply.
The loss is measured by differential pressure using manometers and differential pressure gauge. Pressure tapping is by small ball valves with quick connection. All pressure taps are connected by flexible hoses to a set of specially arranged manifolds such that differential pressure across any component can be measured simply by opening valves without removing the hoses.
The unit is on a steel frame with adjustable footings.
Instruction manual is also included.
TYPICAL EXPERIMENTS- Friction losses in straight pipes at various flow rates.
- Friction losses in pipe fittings, valves, sudden expansion and contraction at various flow rates.
TECHNICAL DATAFriction loss components: – Linear pipes, PVC 3 different diameters. – Short radius bends 2 ea. – Regular elbow 1 ea. – 45o elbows 2 ea. – Valves Gate, globe, ball, and check – Other components Tee section Sudden expansion Sudden contraction Measuring instruments – Water meter and stop watch. – Water manometer with hand air pump – Differential pressure gauge Software for data display and analysis by computer (separately supplied). (0 reviews)
