Additional information
| Brand | Essom |
|---|

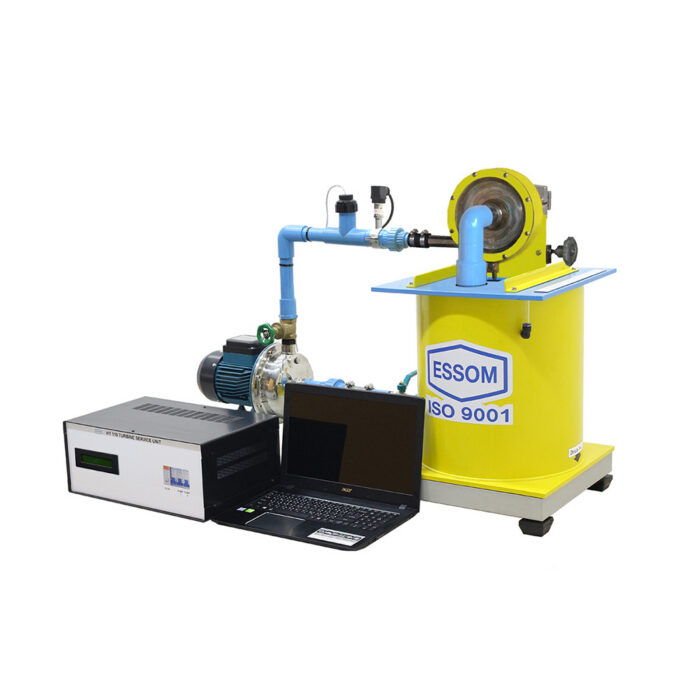

Mini Francis Turbine Demonstration Unit, Computer Interface
This is a mini Francis turbine for studying the turbine characteristics with data analysis by computer.
The unit consists of the mini Francis turbine with a dynamometer, output power sensors, and software. The turbine adjustable guide vanes direct water spirally to the runner.
The unit is to be used with HT110 Mini Turbine Service Unit or HB100N Hydraulic Bench (Neo) with optional accessories. All are separately supplied.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Torque vs speed at various heads and flow rates.
- Power output vs speed for various heads and flow rates.
- Efficiency vs speed for a given head and flow rate.
- Racing characteristics.
TECHNICAL DATA
| Construction |
|
| Ratings | Maximum power over 25 W |
| Dynamometer | Mechanical brake |
| Sensors with digital display | Torque and speed |
| Software for data display and analysis by computer (separately supplied). | |
