Mini Pelton Turbine Demonstration Unit, Computer Interface
This is a mini Pelton turbine for studying the turbine characteristics with data analysis by computer.

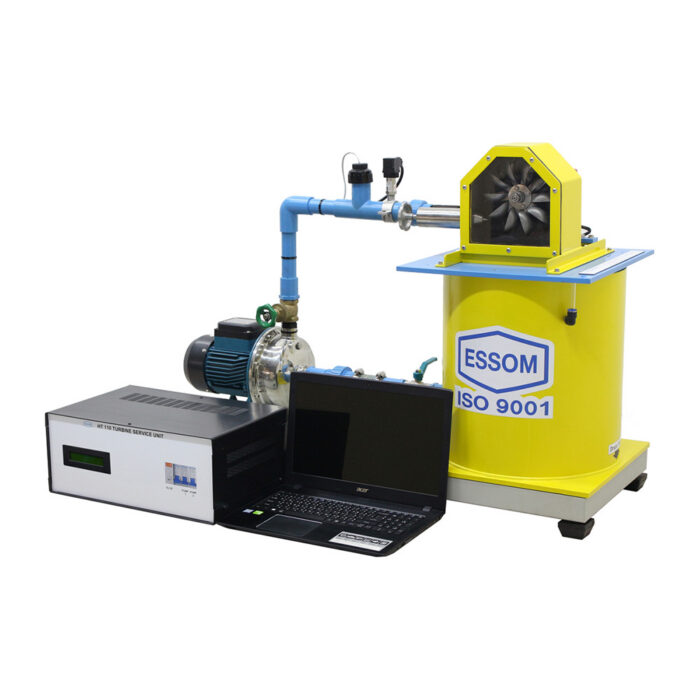

The unit consists of the mini Pelton turbine with a dynamometer, and output power sensors. The adjustable turbine nozzle directs water jet to the runner buckets.
The unit is to be used with HT110 Mini Turbine Service Unit or HB100N Hydraulic Bench (Neo) with optional accessories. Both are separately supplied.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Torque vs speed at various heads and flow rates.
- Power output vs speed for various heads and flow rates.
- Efficiency vs speed for a given head and flow rate.
- Racing characteristics.
TECHNICAL DATA
| Construction |
|
| Ratings | Maximum power over 40 W |
| Dynamometer | Mechanical brake |
| Sensors with digital display | Torque and speed |
| Software for data display and analysis by computer (separately supplied). | |
