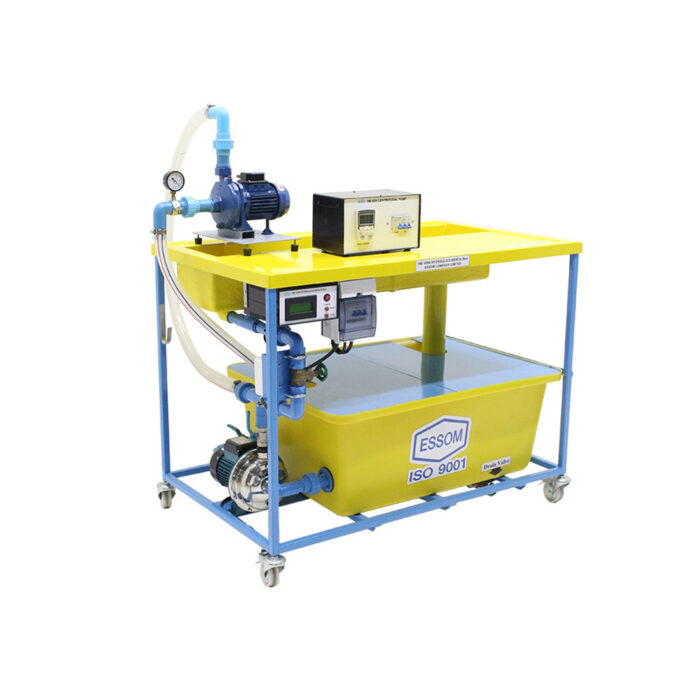

Pump Test Apparatus
This equipment is designed to study of centrifugal pump characteristics at various speed. It is to be used with Hydraulics Bench i.e. HB100 or HB100N (separately supplied).
The pump with motor is mounted on the Hydraulics Bench which acts as a service module. An advanced inverter controls speed as well as indicating speed and input power. Pump hoses with half unions are used to connect the pump with the Hydraulics Bench. Pressure gauges are installed at pump suction with half union and also at pump discharge. The pump draws water from the Hydraulics Bench storage tank via a suction hose with a strainer and delivers flow to the Hydraulics Bench measuring tank (HB100) or flow digital display (HB100N).
TYPICAL EXPERIMENTS
Performance and characteristics of pump
TECHNICAL DATA
| Pump | Maximum flow approximately 80 Lpm. | |
| Maximum head approximately 18 m. | ||
| Speed control | Advanced inverter. | |
| Pressure gauge | Suction. | |
| Software for data display and analysis by computer (separately supplied). | ||
| Power supply | 220 V, 1 Ph, 50 Hz or as required | |
100% Original and qualityRelated products
-
Hydraulic Studies and AccessoriesHydrostatics Pressures
This equipment allows the moment caused by a fluid thrust on a wholly or partially submerged plane surface to be measured directly.
A PVC quadrant is mounted on a balance arm pivoted on knife edges which coincide with the quadrant center. When the quadrant immerses in water, there are hydrostatic forces. The balance arm has an adjustable counter balance and weights with a hanger. The quadrant is mounted on top of a clear acrylic tank which allows water to be admitted and drained to a required level by a valve. The tank rests on adjustable footings and a bull’s eye level is provided.
TYPICAL EXPERIMENTS- Visual demonstration of the Shear Force and Bending Moment at a cut section in a beam
- Determination of the Centre of Pressure
TECHNICAL DATAQuadrant Inner radius 100 mm Outer radius 200 mm Width 75 mm Weights 1 lot. Software for data display and analysis by computer (separately supplied). (0 reviews) -
Hydraulic Studies and AccessoriesOrifice and Jet Flow
This equipment allows determination of coefficient of velocity and coefficient of discharge under various constant heads for two different orifice diameters. Comparison of jet trajectory with that by theory of mechanics can also be made. The equipment is to be used with Hydraulics Bench i.e. HB100 or HB100N (separately supplied).
The equipment consists of a removable clear acrylic cylinder with sharp edge orifice installed at and flush with the lower inside wall of the cylinder. An adjustable overflow allows various constant heads for the test and trajectory of the jet is indicated by probes on the jet path. Heights of the probes are indicated by scales. The apparatus rests on adjustable footings and a level gauge is provided.
TYPICAL EXPERIMENTS- Comparison of the actual and theoretical outlet velocity
- Calculation of discharge coefficient
- Determination of the contraction and velocity coefficients
- Determination of discharge characteristics (jet trajectory) for an orifice mounted in the side of a vertical tank and comparison with simple theory
TECHNICAL DATAOrifice diameter 2 different sizes. Trajectory probes 8, stainless steel Measuring cup 1 L Software for data display and analysis by computer (separately supplied). (0 reviews)
