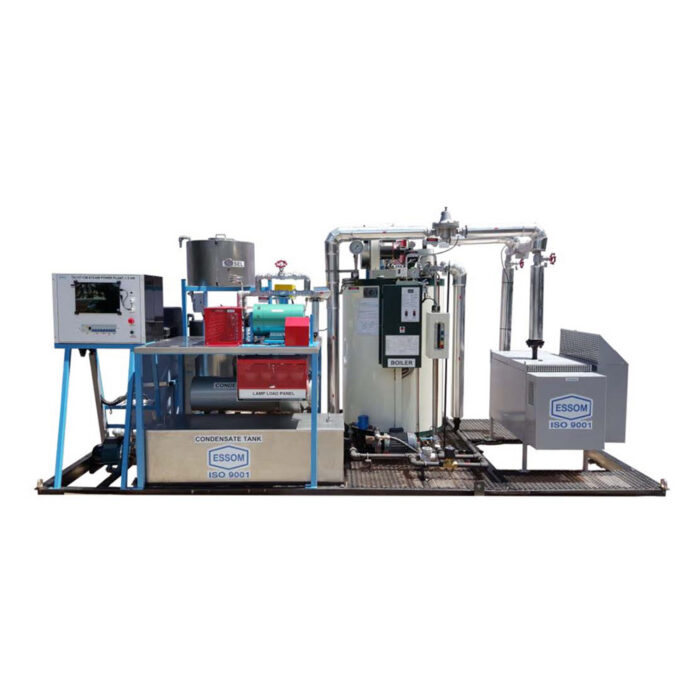

Steam Power Plant: 1.5 kW
The laboratory-sized steam power plant with process control system is designed to simulate modern steam power plant. Main components consist of a feed water system, a small industrial boiler, a steam turbine, a generator and lamp load, a condenser with…
The laboratory-sized steam power plant with process control system is designed to simulate modern steam power plant. Main components consist of a feed water system, a small industrial boiler, a steam turbine, a generator and lamp load, a condenser with a condensate tank and a pump, and a cooling tower. Accessories such as fuel tank, fuel flow meter, feed water meter, and a stack are also included. Instruments are provided for measurement of pressures, temperatures, output voltage and current.
- Measurement of feed water and fuel flow rates.
- Boiler efficiency, turbine generator efficiency, and overall power plant efficiency.
- Condenser heat transfer efficiency.
- Cooling tower efficiency.
- Rankine cycle efficiency.
- Water treatment (optional)
The plant consists of :
| A. | |
|---|---|
| Oil-fired Boiler Unit : | |
| – Type | Vertical, water tube. |
| – Rated heat output | 188 kW (162,000 kcal/h) |
| – Equivalent evaporation | Approx 300 kg/h steam at 0 kg/cm2 gauge. |
| – Maximum working pressure | 10 kg/cm2 gauge (0.98 MPa). |
| – Measuring instruments |
|
| – Safety devices |
|
| – Boiler accessories |
|
| Burner: | |
| – Type | Forced draft, pressure atomized. |
| – Control | On-Off. |
| – Fuel | Diesel or kerosene. (LPG is available as an option.) |
| Fuel system: | |
| – Fuel tank | Stainless steel. |
| – Fuel meter | |
| – Fuel strainer | |
| Feed water system : | |
| – Resin filter for public water. | |
| – Soft water tank. | Stainless steel. |
| – Water meter. | |
| Power supply | 380V. 3Ph. 50Hz. Other power supply is available on request. |
| B. | |
|---|---|
| Single-Stage Industrial Steam Turbine | |
| Description | This is an educational unit steam turbine with measuring instruments and synchronous belt for driving the generator. |
| Technical data | |
| – Type | Torque digital display instead of spring balance. |
| – Construction |
|
| – Maximum mechanical power output : | Over 1.5 kW. |
| – Maximum speed | Approx 33,000 rpm. |
| – Exhaust pressure | Atmospheric |
| Measuring instruments: | |
| – Turbine speed. | |
| – Pressure gauge for inlet steam pressure. | |
| – Inlet and outlet steam temperatures. | |
| – Water manometer for turbine outlet. | |
| C. | |
|---|---|
| AC Generator and Load | |
| Measuring instruments | Generator speed, torque, voltage and current digital display. |
| D. | |
|---|---|
| Water Cooled Condenser and Cooling Tower. | |
| Both condenser and cooling tower should be used together. | |
| TH 102-013 A Condenser | |
| Description | The unit allows a study of heat transfer in a heat exchanger as well as recover condensate for reuse.
The unit consists of a counter flow steam tube heat exchanger and instruments for measurement of temperatures, cooling water flow rate. |
| Technical data | |
| – Type | Steam tube |
| – Accessories |
|
| – Instruments | Temperatures for cooling water inlet and outlet. |
| TH 102-014 A Cooling Tower. | |
| Description | This is an educational unit for recovering of condenser cooling water as well as studying cooling tower efficiency.
A cooling tower is recommended to recycle cooling water in the case TH102-013 condenser is used. The unit consists of a cooling tower unit, a storage tank, a circulating pump and temperature gauges. |
| Technical data | |
| – Cooling tower capacity | 30 RT. |
| – Circulating pump. | |
| – Wet bulb temperature. | |
| – Temperature at cooling tower exit air | |
| Brand |
Essom |
|---|
