Air Flow and ThermodynamicsMini Gas Turbine Power Plant
The unit is an educational two-shaft gas turbine power plant with a radial flow compressor and axial flow turbines, gear box, generator, and electrical loads as in the modern gas turbine power plant.
The first stage is a hot gas generator. Inlet air through an orifice flow measuring device is compressed by a single stage radial flow compressor. The turbine is motor started and runs on Jet A fuel. Fuel is injected by a fuel pump and ignited in the combustion chamber providing hot gas for a single stage axial flow turbine which in turn drives the compressor. The hot gas is discharged axially to a larger power turbine on the second shaft and exhausts to atmosphere. A fan is provided for cooling the gear box.
The power turbine output shaft is connected to the gear box. An alternator is connected to the gear box by a direct coupling. the electrical output is converted by an inverter to 220 VDC and the electrical power output is connected to a lamp load.
An Electronic Control Unit (ECU) controls the basic turbine operation. Additional instruments are provided for monitoring and controlling the plant operation and performance.
A touch screen computer with an interface unit and software are provided for speed and load control, data display and analysis, and to assist the ECU.
Safety features include clear acrylic cover, gas generator over speed shutdown, power turbine over speed protection and power turbine entry over temperature shut down. The unit is floor standing with removable supports.
Instruction manual is also included.
TYPICAL EXPERIMENTS- Understanding the thermodynamic process.
- Input power, output power and plant efficiency.
- Mechanical power of gas turbine (optional)
TECHNICAL DATAGas generator engine construction. – Diffuser High strength aluminium – Combustion chamber Stainless steel – Turbine wheel Vacuum cast inconel – Compressor Garrett high grade aluminium alloy Running fuel Jet A or kerosene with 5 percent jet oil Power turbine construction. – Turbine wheel Vacuum cast inconel – Interstage guide vane Stainless steel Gear box. – Type Planetary – Lubrication Jet A Lamp load 2x 200W and 4x 50W with individual lamp switch. Gear box and generator connection Direct coupling Output power - Electrical approx. 400 W
- Mechanical approx. 700 W (require optional dynamometer)
Accessories - Engine cooling fan
- Gear box cooling fan
- Engine exhaust duct
- 2 ear muffs
- Jet oil
Sensors – Temperatures Ambient air, diffuser exit, gas generator turbine entry, power turbine entry and exit. – Pressures Diffuser exit, gas generator turbine entry, power turbine entry and exit. – Speeds Gas generator and gear box output shaft – Fuel flow rate. – Air flow rate Differential pressure at inlet orifice. Software for data display, analysis and control by computer (separately supplied) Power supply 220V 1Ph 50Hz. Other power supply is available on request. (0 reviews) -
Air Flow and ThermodynamicsMini Steam Power Plant
This is a small low cost miniature power plant designed for educational purpose.
A hand feed pump supplies water from a feed tank to a small gas fired boiler. Steam is throttled to a single cylinder, double acting reciprocating engine. A small DC generator is connected to the engine by a belt and electrical load is applied. Exhaust from the steam engine is condensed in a water cooled condenser. Condensate is collected and measured for steam rate.
Instruments are provided for monitoring and controlling the plant operation and performance as well as for safety.
Instruction manual is also included.
TYPICAL EXPERIMENTS- Fuel consumption
- Efficiencies for boiler, engine and overall plant.
- Condenser heat transfer coefficient.
- Heat balance and energy utilization.
- Ranking cycle efficiency.
TECHNICAL DATABoiler – Type Fire tube vertical boiler – Equivalent evaporation Approx. 7 kg/h steam – Maximum working pressure 5 kg/cm2 (0.49 MPa) Boiler accessories Steam separator, manual feed pump, safety valve, level gauge and low level alarm Fuel Liquefied Petroleum Gas (LPG) Feed water tank Stainless steel with level gauge Feed pump Hand operated Steam engine – Type Single cylinder, double acting – Plant output at maximum working pressure - Mechanical, approximately 7 W
- Electrical, approximately 2 W
Power output measurement Mechanical brake dynamometer Electrical power system DC generator with resistive load Condenser Shell and tube type Measuring instruments: – Pressure gauge Boiler steam outlet – Flow meters 2 ea. – Spring balance and weights for dynamometer torque – Graduated cylinder and stop watch for condensate measurement – Voltage and current digital display. Accessory Boiler cleaning kits Software for data display and analysis by computer (separately supplied). Power supply 220 V, 1 Ph, 50Hz. Other power supply is available on request. (0 reviews) -
Air Flow and ThermodynamicsMini Steam Turbine Power Plant
Mini Steam Turbine Power Plant is designed as a miniature modern day power plant for educational purpose.
A pump supplies water from a feed tank to a small gas fired boiler. The saturated steam can be superheated by an electric superheater (optional). The steam is throttled to single stage turbine. Exhaust from the turbine is condensed in a water cooled condenser. Condensate is collected in a graduated beaker and returned to feed water tank by a pump. A small DC generator is connected to the turbine by a belt, and electrical load is applied. A mechanical dynamometer is provided for measurement of turbine mechanical output. The unit requires outside water supply.
Instruments are provided for monitoring and controlling of plant operation and performance as well as for safety. The unit is on a steel frame with adjustable footings.
Instruction manual is also included.
TYPICAL EXPERIMENTS- Thermodynamic process
- Fuel consumption
- Power generation
- Efficiencies for boiler, turbine, condenser heat transfer and overall plant.
- Effect of temperature on turbine efficiency (optional).
- Effect of super-heated steam on efficiency (optional).
- Heat balance and energy utilization. Rankine cycle efficiency.
TECHNICAL DATABoiler – Type Fire tube vertical boiler – Equivalent evaporation Approx. 7 kg/h steam – Maximum working pressure 5 kg/cm2 (0.49 MPa) Boiler accessories Steam separator, manual feed pump, safety valve, level gauge, and low level alarm Fuel Liquefied Petroleum Gas (LPG) Feed water tank Stainless steel with level gauge Steam turbine – Type - Single stage impulse turbine
- Single nozzle
Power output measurements Mechanical brake dynamometer Electrical power system DC generator with resistive load Condenser Shell and tube type Plant output at maximum worki – Without super heater - Mechanical approximately 10 W
- Electrical approximately 4 W
– With super heater (optional) - Mechanical approximately 15 W
- Electrical approximately 6 W
Safety features – Turbine speed limit. – Emergency switch. Accessories Electric condensate transfer pump and boiler cleaning kits Measuring instruments – Pressures gauge 1 ea. – Flow meters 2 ea. – Graduated beaker and stop watch for condensate measurement – Voltage and current digital display. Software for data display and analysis by computer (separately supplied). Power supply 220 V, 1 Ph, 50Hz. Other power supply is available on request. Similar products:
Compact Steam Turbine Power Plant 0.5 kW
(0 reviews) -
Air Flow and ThermodynamicsMP 315D Subsonic Wind Tunnel: Downstream Fan
The subsonic wind tunnel is an open circuit down stream fan type designed for studying the subsonic aerodynamics. It is to be used with optional accessories and models below.
The air enters the tunnel via a wire mesh screen and a flow straightener. A high contraction ratio section ensures uniform velocity across the transparent test section. Downstream of the working section is a low angle diffuser which terminates at the tunnel fan. The diffuser and contraction sections have a high quality internal finish to minimize the boundary layer effects. The fan impeller blades are of an aerofoil design cast aluminum to ensure maximum aerodynamic efficiency and minimum turbulence. Fan speed is adjustable by an inverter.
Four equally spaced static pressure taps are connected to a manifold to minimize effects from a model. Air speed is indicated by an inclined manometer and a calibration graph. Models are mounted on two components balance support with digital display for measurement of drag and lift. Model holder can be rotated to allow quick change on the angle of incidence. This angle is indicated on an angular scale.
The tunnel is on a frame with adjustable footings for table top mounting.
Instruction manual is also included.
TYPICAL EXPERIMENTS- Pressure and velocity measurement.
- Estimation of drag coefficients of various bodies, eg. sphere, hemisphere, disc, streamlined shape etc.
- Estimation of drag and lift coefficients of an aerofoil.
- Pressure distribution around an aerofoil or a cylinder.
- Investigation of boundary layer at a flat plate by measuring total head distribution.
- Stream lines visualization using a smoke generator.
- Wakes behind models.
TECHNICAL DATAFan: – Diameter 300 mm – Impeller Single stage, aerofoil blade Contraction area ratio 9:1 Test section 150 mm x 150 mm x 450 mm long, transparent on three sides Maximum air velocity Over 30 m/s Measuring instruments – Water manometer Twin type – Wind velocity Multiple taps contraction section differential pressure with velocity calibration graph (to be used with inclined water manometer above) – Sensors with digital display – Lift and drag Two component balance with model holder for measurement of lift and drag Software for data display and analysis by computer (separately supplied). Power supply 220 V, 1 Ph, 50 Hz. Other power supply is available on request. (0 reviews) -

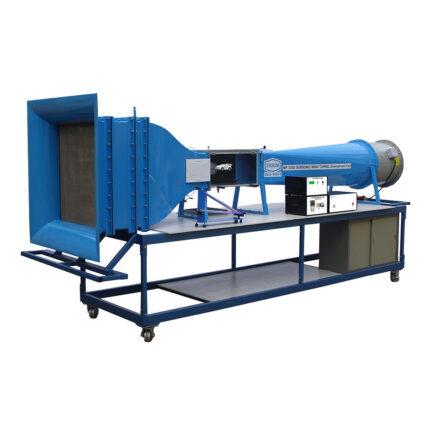

Air Flow and ThermodynamicsMP 330D Subsonic Wind Tunnel: Downstream Fan
This subsonic wind tunnel is an open circuit down stream fan type designed for studying the subsonic aerodynamics. It is to be used with optional accessories and models below.
The air enters the tunnel via an entrance flare. A flow straightener, three wire mesh screens, and a high contraction ratio section ensure uniform velocity across the transparent test section. Downstream of the working section is a low angle diffuser which terminates at the tunnel fan. The diffuser and contraction sections have a high quality internal finish to minimize the boundary layer effects. The fan impeller blades are of an aerofoil design cast aluminum to ensure maximum aerodynamic efficiency and minimum turbulence. Fan speed is adjustable by an inverter.
Four equally spaced static pressure taps are connected to a manifold to minimize effects from a model. Air speed is indicated by an inclined manometer and a calibration graph. Models are mounted on two components balance support with digital display for measurement of drag and lift. Model holder can be rotated to allow quick change on the angle of incidence. This angle is indicated on an angular scale.
The tunnel is mounted on a steel table on wheels.
TYPICAL EXPERIMENTS- Pressure and velocity measurement.
- Estimation of drag coefficients of various bodies, eg. sphere, hemisphere, disc, streamlined shape etc.
- Estimation of drag and lift coefficients of an aerofoil.
- Pressure distribution around an aerofoil or a cylinder.
- Effects of instability of a “flutter Wing”.
- Investigation of boundary layer at a flat plate by measuring total head distribution.
- Stream lines visualization using a smoke generator.
- Wakes behind models.
TECHNICAL DATAFan : – Diameter : 500 mm. – Impeller : Single stage, aerofoil aluminum blade. Contraction area ratio : 7:1. Air velocity control : Inverter. Test Section : 300 mm x 300 mm x 600 mm long, transparent on three sides. Maximum air velocity : Over 30 m/s. Measuring instruments – Water manometer : Twin type. – Wind velocity : Multiple taps contraction section differential pressure with velocity calibration graph (to be used with inclined water manometer above). – Lift and drag : Two component balance for measurement of lift and drag. Power supply : 380 V 3 Ph 50 Hz. Other power supply is available on request. (0 reviews) -
Air Flow and ThermodynamicsMulti Heat Exchanger
The apparatus is used for studying of three types of heat exchangers namely-concentric tube, shell and tube, and plate-under parallel or counter flow conditions.
The unit consists of the three heat exchangers and a service module. The module comprises a hot water tank with a transfer pump and instruments for monitoring and control. Changing from one type of heat exchanger to another is by rearranging flexible hoses and changing from parallel to counter flow is by switching two hoses with quick couplings. The unit requires outside water supply.
Instruction manual is also included.
TYPICAL EXPERIMENTS- Comparison of heat transfer for concentric tube, shell and tube, and plate heat exchanger.
- Demonstration of heat transfer under parallel or counter flow.
- Demonstration of batch type heat transfer for jacketed vessel.
- Determination heat transfer coefficient. Effects of flow rate and temperature difference.
TECHNICAL DATAHeat exchangers: – Concentric tube Stainless steel outer and inner tubes. – Shell and tube Stainless steel shell and 7 inner tubes. – Plate Stainless steel multiple plates. Stainless steel multiple plates. Service module consisting of: – Hot water pump. – Heater 3000 W – Flow meters - Hot water
- Cold water
– Temperature control unit to limit temperature of hot water to not more than 80°C Software for data display and analysis by computer (separately supplied). Power supply 220 V, 1 Ph, 50 Hz. Other power supply is available on request (0 reviews) -
Air Flow and ThermodynamicsMulti Heat Exchanger (Transparent Casing)
The apparatus is used for studying of three types of heat exchangers namely-concentric tube, shell and tube, and plate-under parallel or counter flow conditions.
The unit consists of the three heat exchangers and a service module. The module comprises a hot water tank with a transfer pump and instruments for monitoring and control. Changing from one type of heat exchanger to another is by rearranging flexible hoses and changing from parallel to counter flow is by switching two hoses with quick couplings. The unit requires outside water supply.
Instruction manual is also included.
TYPICAL EXPERIMENTS- Comparison of heat transfer for concentric tube, shell and tube, and plate heat exchanger.
- Demonstration of heat transfer under parallel or counter flow.
- Demonstration of batch type heat transfer for jacketed vessel.
- Determination heat transfer coefficient.
- Effects of flow rate and temperature difference.
TECHNICAL DATAHeat exchangers: – Concentric tube Stainless steel outer and inner tubes. – Shell and tube Stainless steel shell and 7 inner tubes. – Plate Stainless steel multiple plates. Stainless steel multiple plates. Service module consisting of: – Hot water pump. – Heater 3000 W – Flow meters - Hot water
- Cold water
– Temperature control unit to limit temperature of hot water to not more than 80°C Software for data display and analysis by computer (separately supplied). Power supply 220 V, 1 Ph, 50 Hz. Other power supply is available on request (0 reviews) -
Air Flow and ThermodynamicsMulti Stage Centrifugal Air Compressor Demonstration Unit – Computer Interface
This is a bench top unit for studying the multi stage centrifugal air compressor characteristics with data analysis by computer.
The unit consists of a small multi stage air compressor with a motor on a steel base, inlet and outlet ducts, sensors and software.
Speed control is by a variac.
Instruction manual is also included.
TYPICAL EXPERIMENTS- Flow rate vs pressure.
- Compressor input, output, and overall efficiency.
- Effect of speed on compressor performance.
TECHNICAL DATACompressor – Type 2 stage, centrifugal – Rated maximum flow rate 0.03 m3/s – Rated maximum pressure 25 kPa Inlet duct Transparent with orifice Outlet duct Transparent with damper Speed control Variac Sensors with digital display - Differential pressure across the fan
- Differential pressure at the orifice
- Temperature of inlet air
- Compressor speed
- Input power
Computer interface unit Software for data display and analysis by computer (separately supplied). Accessory Barometer Power supply 220 V, 1 Ph, 50 Hz. Other power supply is available on request. (0 reviews) -
Air Flow and ThermodynamicsPlate Heat Exchanger
The apparatus is used for studying heat transfer through a plate heat exchanger under parallel or counter flow conditions.
The unit consists of a plate heat exchanger and a service module. The module comprises a hot water tank with a transfer pump and instruments for monitoring and control. Parallel or counter flow is by switching cold water hoses with quick coupling. The unit requires outside water supply.
Instruction manual is also included.
TYPICAL EXPERIMENTS- Demonstration of heat transfer under parallel and counter flow.
- Determination of heat transfer coefficient.
- Effects of flow rate and temperature difference.
TECHNICAL DATAConstruction arrangement Stainless steel, 8 plates Service module consisting of: – Hot water pump. – Heater 3000 W – Flow meters - Hot water
- Cold water
– Temperature control unit to limit temperature of hot water to not more than 80°C Software for data display and analysis by computer separately supplied). Power supply 220 V, 1 Ph, 50 Hz. Other power supply is available on request. (0 reviews)
