Compact Cross Flow Turbine Test Set
Compact Cross Flow Turbine Test Set is a self contained bench top set for studying the Cross Flow turbine characteristics under various flow rates and heads.
Description

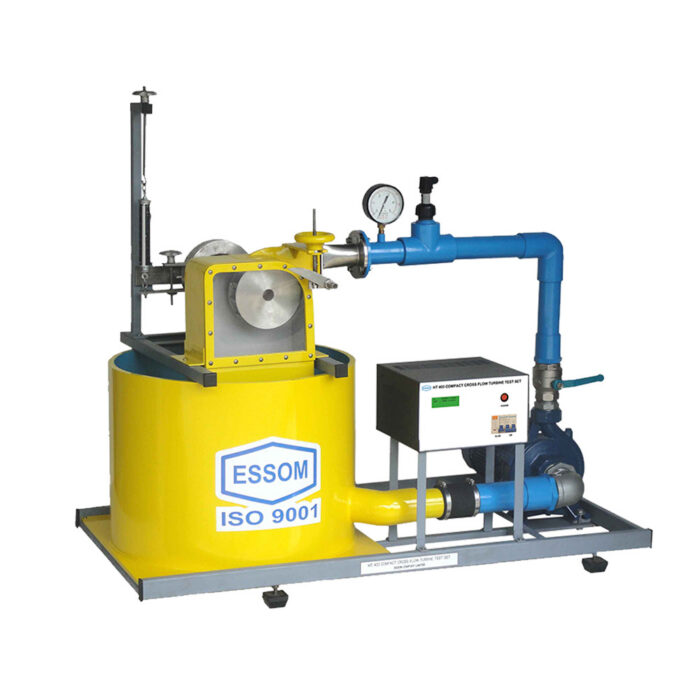

Compact Cross Flow Turbine Test Set. This is a self contained bench top set for studying the Cross Flow turbine characteristics under various flow rates and heads.
The unit consists of a storage tank, a pump, a turbine, a dynamometer, and measuring instruments.
The adjustable nozzle directs the water jet tangentially to the runner.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Torque vs speed at various heads and flow rates.
- Power output vs speed for various heads and flow rates.
- Efficiency vs speed for a given head and flow rate.
- Racing characteristics.
TECHNICAL DATA
| Turbine: | |
| – Construction | |
|
|
| – Ratings |
|
| Pump ratings: | |
| – Motor | 2.2 kW |
| Dynamometer | Water cooled mechanical brake absorber with anti splashing system |
| Measuring instruments | |
| – Torque | Spring balance |
| – Pressure | Pressure gauge |
| – Sensors with digital display | Flow rate and speeds |
| Software for data display and analysis by computer (separately supplied). | |
| Power supply | 220 V, 1 Ph, 50 Hz. Other power supply is available on request. |
