Additional information
| Brand | Essom |
|---|

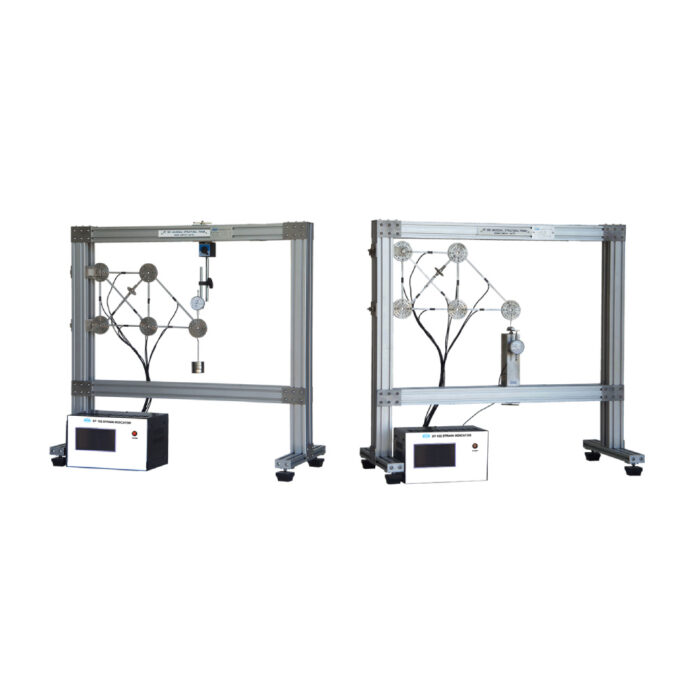

Redundant Truss
The equipment allows measurement of deflections and axial forces in pin-jointed truss members when a redundant member is added. It is to be used with ST300 Universal Structural Frame (separately supplied).
A wall mounted truss frame has a pinned upper joint and the lower joint a roller bearing on a support. There are 7 truss members and an extra member with an adjustable length. Load is applied by a load hanger and weights. Deflection is measured by a dial indicator. Each truss member has a strain gauge which is wired to form a full bridge with temperature compensation and zero adjustment in the strain indicator.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Study of strains, stresses, forces and deflections in a statically determinate and indeterminate structure
- Force analysis by Method of Joints
- Force analysis by the use of the strain energy method.
TECHNICAL DATA
| Member approximate cross-section | 30 mm2 |
| Members with strain gauge bridge | 8 |
| ST 131 Dial Indicator | 1 |
| ST 341-001 Force/Strain Indicator | 1 |
| Load hanger | 1 |
| Weights | 1 lot. |
| Software for data display and analysis by computer (separately supplied). | |
| Power supply | 220 V, 1 Ph, 50Hz. or as required |
