Virtual Work

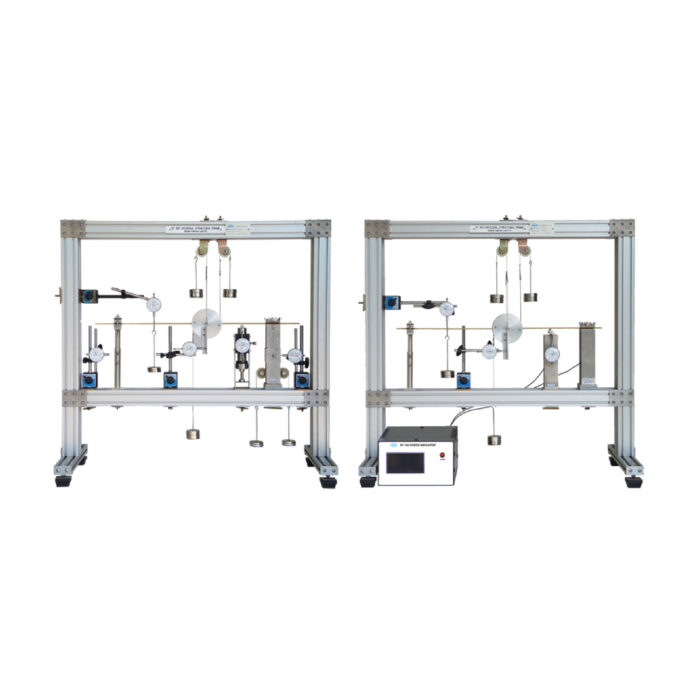

The equipment is used for applying the principle of virtual work to the derivation of redundant reactions. It is to be used with ST300 Universal Structural Frame (separately supplied).
An elastic beam is supported at both ends by one moment support and one built-in / knife edge support. Moment support permit the application and measurement of moment and rotation. A vertical force support, is used for the case of two span continuous beam. A clamp on moment application device with a mean to counter balance the device weight is provided to apply a pure moment and measure rotation. The beam is loaded by weights. The deflection and slope of the beam can be measured by dial indicators.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Principle of virtual work
- Beam deflections
- Shape of a deflected beam.
TECHNICAL DATA
| Test beam | |
| – Steel | 1 |
| Supports |
|
| Moment application device | 0-3 Nm |
| Pulley set | 2 |
| Cords | 3 |
| Load hangers | 4 |
| Weights | 1 lot |
| ST131 Dial Indicators | 4 |
| Software for data display and analysis by computer (separately supplied). | |
