Additional information
| Brand | Essom |
|---|

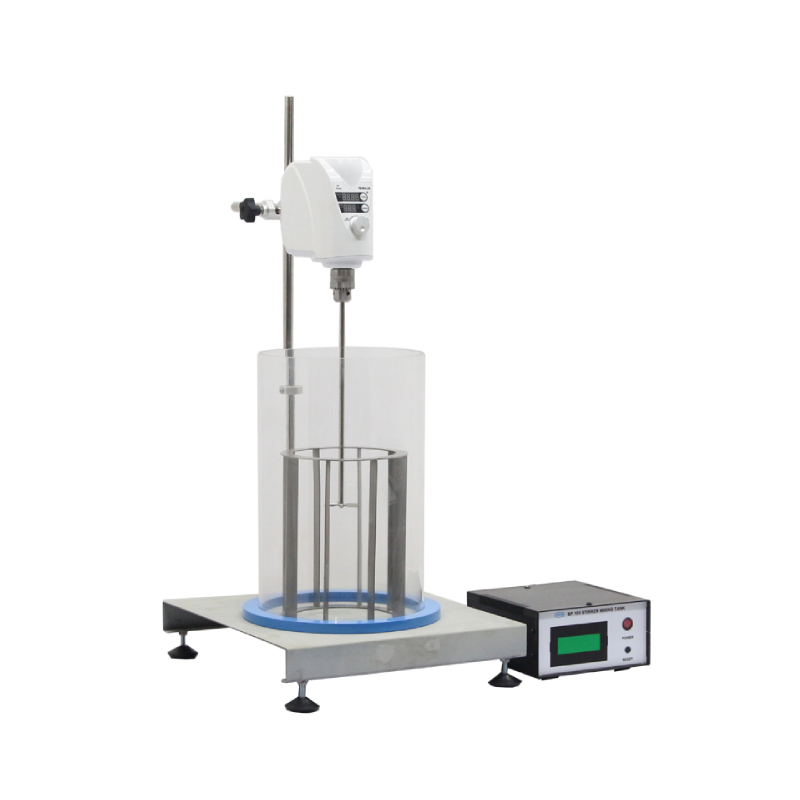

Stirrer Mixing Tank
The stirrer mixing tank is a bench top unit for a study of mixing two materials.
The unit consists of a mixing tank with removable baffles and a drain valve. A variable speed agitat
TYPICAL EXPERIMENTS
- Mixing/flow visualization.
- Power/speed of different impellers.
- Mixing of solid/liquid suspensions.
- Mixing of two immiscible liquids.
- Mixing quality vs mixing time.
- Prediction of power for large scale mixers.
TECHNICAL DATA
| Mixing tank | |
| – Materials | Transparent |
| – Capacity | Approx. 20 L |
| Impellers | |
| – Turbine blade | 1 |
| – Propeller blade | 1 |
| – Flat blade paddles | 2 |
| – Flat blade paddle with holes | 2 |
| Digital display |
|
| Software for data display and analysis by computer (separately supply) | |
| Power supply | 220 V, 1 Ph, 50 Hz. Other power supply is available on request. |
